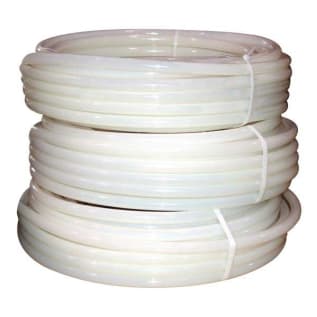

Uponor AquaPEX® F1100500 Tubing, 1/2 in Nominal, 0.475 in ID x 5/8 in OD x 500 ft Coil L, White, PEX-A

1204970 MFG #: F1100500
$399.55 / ea

Uponor AquaPEX® Tubing, 1/2 in Nominal Size, 0.475 in Inside Dia, 5/8 in Outside Dia, 500 ft Coil Length, 130 psi Working, 120 deg F, PEX-A, White

Uponor AquaPEX® white tubing is suitable for use in hydronic heating applications where the system contains no ferrous corrodible components or where any ferrous components are isolated from the tubing. Uponor AquaPEX® white tubing is manufactured and listed to ASTM F876 and F877 and CSA B137.5, certified to NSF Standards 14 and 61 and listed by the Hydrostatic Stress Board of PPI at 200degF at 80psi, 180degF at 100psi and 73.4degF at 160psi. Uponor AquaPEX® tubing (1/2", 3/4", 1" and 11/4" only) is also listed to UL 1821 and ULC/ORD C199P and carries an additional rating of 120degF at 130psi. Uponor AquaPEX® white tubing is marked with the PEX 5106 designation as required by the most recent edition of ASTM F876-15a, indicating it exceeds ASTM F876 chlorine-resistance requirements for continuous-recirculation systems operating up to 140degF while also affording a 30-day UV-resistance level.

QTY
  • Features
  • Use ProPEX® fittings for 3/8 in through 3 in pipe
  • 1.1 in at 10 deg F of 100 ft linear expanssion rate
  • Cross-linked polyethylene
  • Standard/Approvals: ANSI/NSF 14/61 Certified, ASTM F-876/F-877/F-1960/F-2023/E-84/E-119/E-814, AWWA C904, CAN S102.2/S101, CSA B137.5/B214; NSF 14/61, UL 18213/263, ULC/ORD-C199P3, ULC S115/S102.2/S101
  • WARRANTY: Limited
