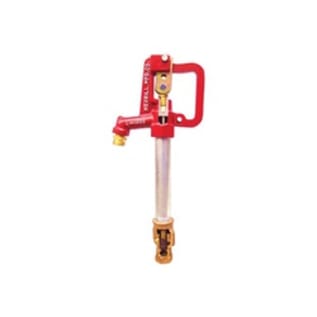

Merrill™ C-1000 CNL7503 Frost-Proof Yard Hydrant, 3/4 in, NPT x Hose Threaded, 3 ft Bury, 68-1/2 in OAL, Lever Handle Shut-Off, Domestic

1195570 MFG #: CNL7503
$196.00 / ea
  • Bury Depth: 3
  • Domestic/Import: Domestic
  • End Style: NPT x Hose Thread
  • Head Material: Cast Iron
  • Nominal Size: 3/4
  • Overall Length: 68-1/2
  • Rod Diameter: 3/8
  • Rod Material: Stainless Steel
  • Series: C-1000
  • Shut-Off Type: Lever Handle
  • Type: Frost-Proof

Merrill™ Yard Hydrant, Lead Free Frost-Proof, Series: C-1000, 3/4 in Nominal, NPT x Hose Threaded, 3 ft Bury Depth, 68-1/2 in Overall Length, 3/8 in Rod Dia, Lever Handle Shut-Off, Cast Iron Head, Stainless Steel Rod, Domestic

The C-1000 Series yard Hydrant gives year-round water service that drains below the frost line once shut off. The Merrill™ C-1000 series, the most popular and competitive line of yard hydrants, has incorporated time-proven materials and the small detail improvements discovered over the last 65 years. Only Merrill™ builds in 5 exclusive benefits to give you the best value in the industry.

  • Features
  • Videos
  • Lever control operates by cam principle and pulls straight up on operating rod, provides variable flow from trickle to full flow without lock to hold lever, variable flow with no lock that rusts in place
  • Draw straps are made of 1040 hot rolled steel which is much harder (Brinell 175/200) and stronger, greatly reduces wear of straps and eliminates side pull on operating rod, longest operating life
  • Stainless steel operating rod is ground and polished and will not cut out packing and packing nut, like brass rod used by other companies, best material for longest operating life
  • Heavy duty solid no lead brass hose adapter threaded for standard 3/4 in hose coupling
  • Pivot connector with two nuts provides simple positive adjustment and eliminates unreliable set screws used by other companies, adjustable for years, not like rusting set screw
  • 1-piece plunger uses double seal design to assure positive shut-off even when foreign particles are present, plunger positively opens drain to prevent freezing and positively closes even at slow flow rates, economical design that still closes drain hole
  • Long life plunger is molded with ethylene propylene material that is self-lubricating and will not bond to brass valve body like rubber plunger used by other companies, longest operating life in one piece design
  • Double bypass valve body provides a large volume of water and the time-proven design used for over 65 years, high water flow with economical design
  • Locking eye on head and lever allows hydrant to be padlocked shut when not in use, protects from wasting of water
  • Swivel permit withdrawal of moving parts without digging up hydrant, nothing in head assembly to disconnect or adjust when removing, simply unscrew entire head assembly from galvanized or stainless steel pipe and pull up valve stem with plunger for inspection
  • Very simple repair, easily done at ground level
  • 3/4 in no lead hose thread adapter stainless steel operating rod thru Teflon® packing self-lubricating plunger
  • 1 in galvanized stand pipe, have no exposed threads subject to the weather, no exposed steel on pipe to rust
  • Operating rod from top stainless steel to plunger
  • 3/4 in NPT in heavy no lead casting
  • WARRANTY: 1 Year Limited
