John Guest®

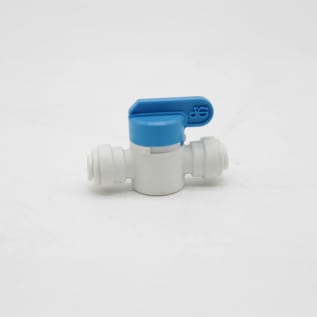

John Guest® Speedfit® PPSV040808W Shut-Off Valve, 1/4 in, Tube, Polypropylene Body, EPDM Softgoods
John Guest® Speedfit® Shut-Off Valve, Lead Free, 1/4 in Nominal, Tube, 150 psi, 140 deg F, Polypropylene Body, EPDM Softgoods
Documents
- Push-fit technology
- Quick disconnection without the need for tools
- High chemical resistance
- 1/4 turn from open to closed
- Not suitable for air or inert gases
- Speedfit to speedfit connector
- The valves are for use with potable water
- For use with other potable liquids please contact our technical support department for guidance
- The valves are not to be used with compressed air, explosive gases, petroleum spirits and other fuels or for heating systems
- Working pressures and temperatures: 150 psi at 70 deg F (10 bar at 20 deg C), 60 psi at 140 deg F (4 bar at 60 deg C)
- All these fittings are produced in Food and Drug Administration (FDA) compliant materials and are therefore recommended for food quality applications
- EPDM seal
- Standard/Approvals: NSF 61
John Guest® Speedfit® Shut-Off Valve, Lead Free, 1/4 in Nominal, Tube, 150 psi, 140 deg F, Polypropylene Body, EPDM Softgoods
The PPSV Range of shut-off valve is offered for tube sizes 1/4 in OD and 3/8 in OD, produced in polypropylene and fitted with EPDM O-rings. Polypropylene has the advantage of being more chemically resistant than acetal.
- Brand: John Guest®Body Material: PolypropyleneEnd Style: TubeNominal Size: 1/4Pressure Rating: 150Softgoods Material: EPDMTemperature Rating: 140
