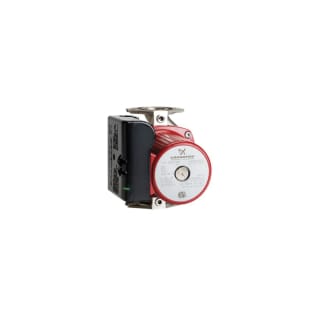

Grundfos 95906633 UPS Circulator Pump, 52 gpm Flow Rate, 230 VAC, 1 ph
Grundfos Circulator Pump, Series: UPS, 52 gpm, 45.28 ft Maximum Head, 370 W, 230 VAC, 1.2 to 1.7 A, 60 Hz, 1 ph, 145 psi Maximum, 104 deg F Ambient, 7-1/8 in W x 6-1/2 in H
Documents
- Ceramic shaft and radial bearings
- Carbon axial bearing
- Stainless steel rotor can and bearing plate
- Corrosion resistant impeller, composite, PES
- Stainless steel pump housing
- 1 ph motor, no additional motor protection is required
- Standard/Approvals: CSA Certified|ETL Approved
Grundfos Circulator Pump, Series: UPS, 52 gpm, 45.28 ft Maximum Head, 370 W, 230 VAC, 1.2 to 1.7 A, 60 Hz, 1 ph, 145 psi Maximum, 104 deg F Ambient, 7-1/8 in W x 6-1/2 in H
The pump is of the canned rotor type, i.e. pump and motor form an integral unit without shaft seal and with only two gaskets for sealing. The bearings are lubricated by the pumped liquid.
- Brand:Â GrundfosAmperage Rating:Â 1.2 to 1.7Dimensions:Â 7-1/8 in W x 6-1/2 in HFlow Rate:Â 52Frequency Rating:Â 60Maximum Head:Â 45.28Maximum Pressure:Â 145Power Rating:Â 370Series:Â UPSTemperature Rating:Â 104 deg F AmbientVoltage Rating:Â 230Phase:Â 1
