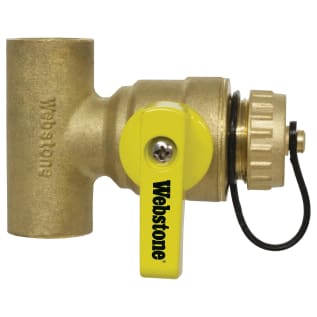

Webstone T-Drain™ Clean Brass™ H-50673W Pro-Pal® Ball Valve, 3/4 in, C x C, Brass Body, Full Port

1186920 MFG #: H-50673W
$31.83 / ea

Webstone T-Drain™ Clean Brass™ Ball Valve, Series: Pro-Pal® 5067, 3/4 in Nominal, C x C, 600 psig WOG, 100 deg F, Full Port, Media: Water/Oil/Gas, Lever Handle Actuator, HCP Brass Ball, 2-3/8 in Top to Inlet Center, Brass Body, Brass Trim, PTFE Seat, Stem Seal

Designed for residential, commercial or industrial use with water or a glycol mixture. This approved Webstone valve is actuated by a blowout proof stem and features an adjustable packing gland. Flange features a conical inlet to minimize turbulence. Solder joint temperature ratings are per ASME B16.18 Annex A for 95-5 solder. Other solder materials have lower pressure/temperature limits. Do not silver braze or overheat valves when soldering.

  • Features
  • Full port forged brass fittings with hi-flow hose drain
  • Eliminates assemblies needed for installing drains into a line
  • Install anywhere a drain or purge valve is required
  • Hi-flow alternative for filling, draining, or venting closed loop hydronic systems
  • Add a garden hose connection to any water source in lines up to 2 in
  • Guaranteed for life
  • Replaces 2 components
  • Eliminates 1 leak path
  • Saves 9 minutes of labor
  • Lead free compliant
  • Standard/Approvals: ISO 9001 Certified, NSF/ANSI 61-G and 372 Certified
