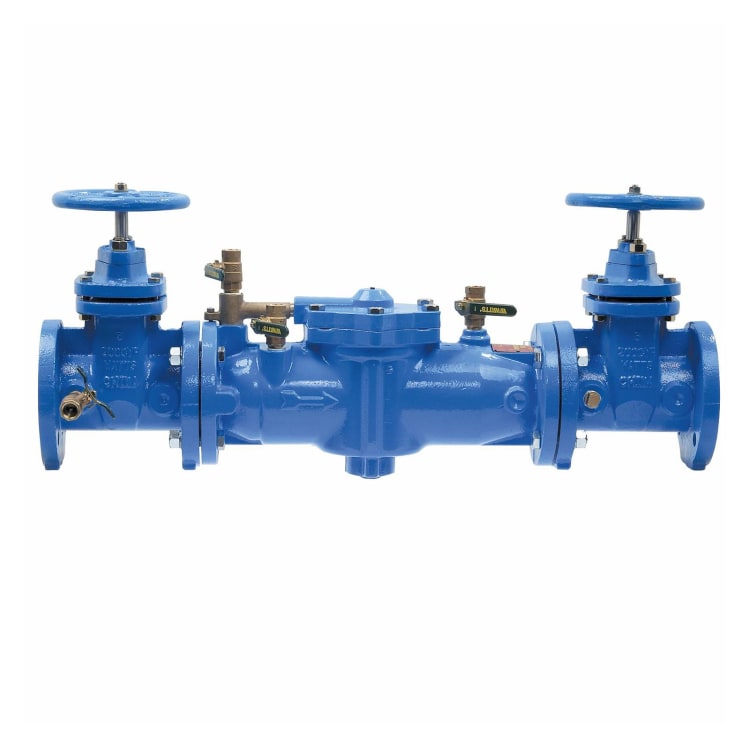

WATTS® 0122612 LF009 Reduced Pressure Zone Assembly, 2-1/2 in, Resilient Seated Gate Valve, Cast Iron Body

1179882 MFG #: 0122612
$4,458.00 / ea
  • Application: For health hazard applications
  • Ball Valve/Gate Valve type: Resilient Seated Gate Valve
  • Body Material: Cast Iron
  • Brand: WATTS®
  • Finish: Epoxy Coated
  • Manufacturer: Watts Water Technologies
  • Nominal Size: 2-1/2 in
  • Port Type: Full
  • Pressure Rating: 175 psi
  • Series: LF009
  • Temperature Rating: 110 deg F Continuous/140 deg F Intermittent

WATTS® Lead Free Reduced Pressure Zone Assembly, Series: LF009, 2-1/2 in Nominal, 175 psi, 110 deg F Continuous/140 deg F Intermittent, Resilient Seated Gate Valve Ball Valve/Gate Valve type, Full Port, Cast Iron Body, Epoxy Coated

Series LF009 Reduced Pressure Zone Assemblies are designed to protect potable water supplies in accordance with national plumbing codes and water authority requirements. This series can be used in a variety of installations, including the prevention of health hazard cross connections in piping systems or for containment at the service line entrance. The LF009 features Lead Free construction to comply with Lead Free installation requirements. This series features two in-line, independent check valves, captured springs and replaceable check seats with an intermediate relief valve. Its compact modular design facilitates easy maintenance and assembly access.

  • Features
  • Single access cover and modular check construction for easy of maintenance
  • Top entry all internals immediately accessible
  • Captured spring assemblies for safety
  • Internal relief valve for reduced installation clearances
  • Replaceable seats for economical repair
  • Large body passages provides low pressure drop
  • Compact space saving design
  • Non-rising stem resilient seated gate valve
  • Standard/Approvals: ASSE 1013, AWWA C511, CSA B64.4, IAPMO 1563, UPC Certified
  • INCLUDES: (2) Resilient Seated Isolation Valves, (4) Resilient Seated Test Cocks and Air Gap Drain Fitting
