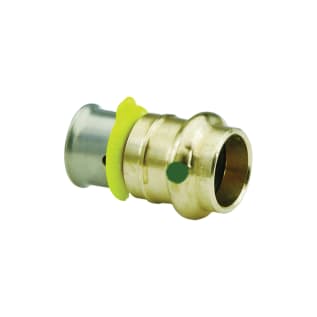

Viega 99626 PureFlow® Model 2813PZL Adapter With EPDM Sealing Element, 1/2 x 3/4 in, PEX Press, Bronze, Import
Viega PureFlow® Adapter, Series: Model 2813PZL, Fitting/Connector Type: Adapter, 1/2 x 3/4 in Nominal Size, PEX Press, 1.83 in Length, 160 psi, Bronze, 180 deg F, Import
- Viega PureFlow® press zero lead bronze fittings are cast and machined from extruded or forged zero lead bronze
- This gives the fitting high corrosion and stress-crack resistance
- Viega PureFlow® press zero lead bronze fittings are precision-made to tight tolerances for a consistent fit with Viega PureFlow® PEX tubing
- For transitioning between Viega PEX Press and Viega ProPress®ASTM F877 specification for crosslinked polyethylene (PEX) plastic hot and cold-water distribution systems
- Standard/Approvals: ANSI/NSF 61 Annex G|ASTM F87/F877|California AB 1953|CSA B137.5|IAPMO Listed|ICC ES-PMG™ 1038/1015|NFPA 13D|NSF 14/61|UL 1821
- INCLUDES: EPDM Sealing Element
- WARRANTY: Limited
Viega PureFlow® Adapter, Series: Model 2813PZL, Fitting/Connector Type: Adapter, 1/2 x 3/4 in Nominal Size, PEX Press, 1.83 in Length, 160 psi, Bronze, 180 deg F, Import
This product specification designates the requirements for Viega PureFlow® Press Zero Lead Bronze fittings with attached stainless steel press sleeves and tool locator ring to be used as connections for Viega PureFlow® PEX, Barrier, and FostaPEX tubing in 5/16 in, 3/8 in, 1/2 in, 5/8 in, 3/4 in, 1 in 1-1/4 in, 1-1/2 in and 2 in sizes as available. The connections are to be completed with the aid of a PureFlow® Press Hand Tool or PureFlow® Press Power Tool.
- Brand: Viega
