Apollo™

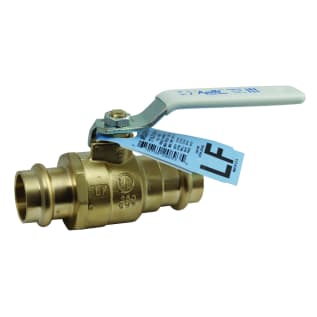

Apollo™ APOLLOXPRESS® 77VLF10501 2-Piece Ball Valve, 1 in, Press, Brass Body, Full Port, Domestic

1165250 MFG #: 77VLF10501
$95.76 / ea
  • Actuator Type: Lever Operated
  • Ball Material: Chrome Plated Brass
  • Body Material: Brass
  • Domestic/Import: Domestic
  • End Style: Press
  • Inlet to Outlet Length: 3.88
  • Media: Chilled Water/Hot Water
  • Nominal Size: 1
  • Port Type: Full
  • Pressure Rating: 250
  • Series: 77VLF
  • Softgoods Material: RPTFE/EPDM
  • Temperature Rating: 0 to 250
  • Top to Inlet Center: 2.11
  • Trim Material: Brass Stem and RPTFE Seat
  • Type: 2-Piece

Apollo™ APOLLOXPRESS® Ball Valve, 2-Piece, Series: 77VLF, 1 in Nominal, Press, 250 psi, 0 to 250 deg F, Full Port, Media: Chilled/Hot Water, Lever Handle Actuator, Chrome Plated Brass Ball, 3.88 in Inlet to Outlet Length, 2.11 in Top to Inlet Center, Brass Body, Brass Trim, RPTFE Stem Packing Seat/EPDM O-Ring, Domestic

The ApolloXpress® 77VLF Series Lead Free two-piece press ball valve is ideal for installation in most plumbing and heating systems, including potable water. Now with Leak Before Press® feature and 250 psig maximum working pressure.

QTY
  • Features
  • Videos
  • Adjustable stem packing nut
  • Ridgid® XLC press tool compatible
  • Leak before Press® technology
  • Blow-out proof stem design
  • Silicone free
  • 100% factory tested
  • EPDM O-ring seals
  • UNS C27451 lead free brass retainer
  • Complies with Federal Public Law 111-380, ANSI 3Rd Party approved and Listed
  • Note: lead free the wetted surfaces of this product shall contain no more than 0.25% lead by weighted average
  • Standard/Approvals: ARRA Compliant, Directive 2011/65/CE Certified RoHS Compliant, IAPMO IGC-157, MSS SP-110, NSF/ANSI 61-G, NSF/ANSI 372, UNS C27451 Valve Body
  • WARRANTY: 5 Years
