Febco® 0122977 LF650A Wye-Pattern Strainer, 1 in, 3-3/4 in OAL, FNPT, Cast Copper Silicon Alloy

1157533 MFG #: 0122977
$110.00 / ea

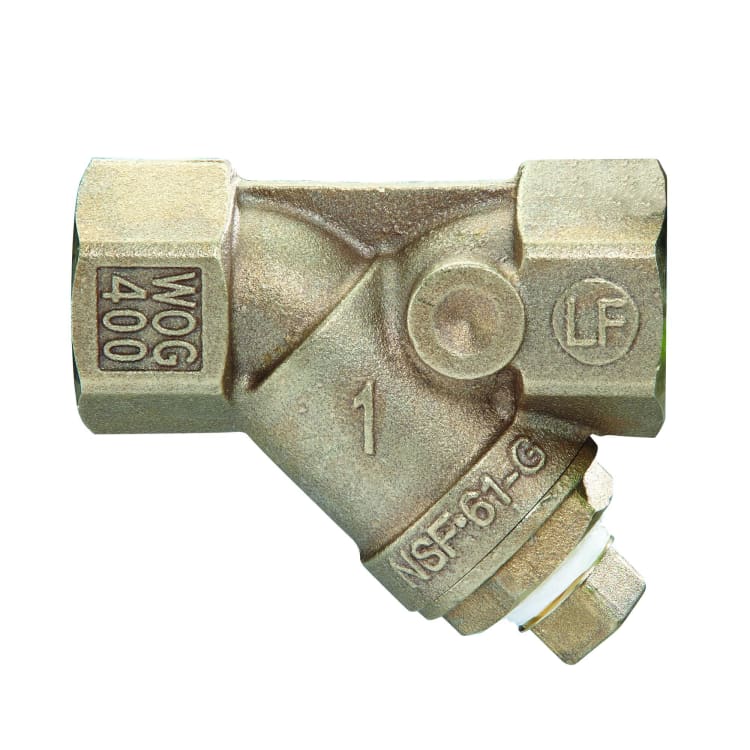

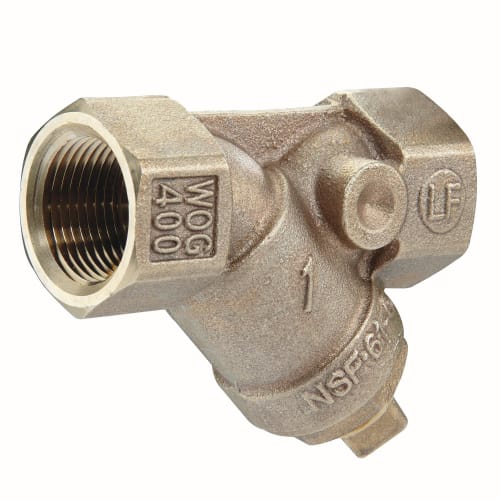

Febco® 0122977 LF650A Wye-Pattern Strainer, 1 in, 3-3/4 in OAL, FNPT, Cast Copper Silicon Alloy
  • Blow-Off Size: 1/2 in NPT
  • Connection Type: FNPT
  • Domestic/Import: Domestic
  • Nominal Size: 1
  • Overall Length: 3-3/4
  • Series: LF650A
  • Body Material: Cast Copper Silicon Alloy

Febco® Strainer, Wye-Pattern, 1 in Nominal, 3-3/4 in Overall Length, FNPT, 1/2 in NPT Blow-Off, Cast Copper Silicon Alloy

This 1 in lead free wye pattern strainer is designed to be installed in the water piping systems to protect expensive equipment such as backflow preventers from damage or failure that can be caused by foreign material in the pipeline. It consists of a lead free body, tapped retainer cap with closure plug, gasket and 304 stainless steel recessed screen seats for accurate screen alignment. The maximum working pressure is 200 psi.

QTY
Add to List
  • Features
  • Tapped blow down port
  • Tapped retainer cap with closure plug
  • 304 stainless steel 20 mesh screen
  • Cast copper silicon alloy cap/cover
  • 400 psi at 210 deg F WOG, 125 psi at 353 deg F WSP max working pressure
  • The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight
  • Standard/Approvals: PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
