BrassCraft®

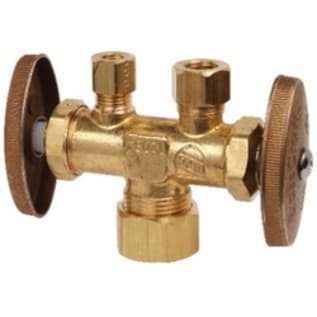

BrassCraft® CR1900DVSX R Multi-Turn Dual Outlet/Dual-Shut-Off Straight Stop, 1/2 x 3/8 x 1/4 in, Compression, 125 psi, Brass Body, Domestic

1156063
$71.77 / ea
  • Body Material: Brass
  • Dimensions: 1.17 x 4.3
  • Domestic/Import: Domestic
  • End Style: Compression
  • Finish: Rough Brass
  • Media: Water
  • Nominal Size: 1/2 x 3/8 x 1/4
  • Pressure Rating: 125
  • Softgoods Material: Nitrile Rubber Bib, Packing Washer
  • Temperature Rating: 40 to 140
  • Trim Material: Brass/POM
  • Type: Multi-Turn

BrassCraft® Dual Outlet/Dual-Shut-Off Straight Stop, Multi-Turn, 1/2 x 3/8 x 1/4 in Nominal, Compression, 125 psi, Media: Water, Brass Body, Brass/POM Trim, Nitrile Rubber Bib, Packing Washer, 40 to 140 deg F, 1.17 x 4.3 in, Domestic

Unlike a standard dual outlet stop, the BrassCraft dual outlet, dual shut-off 1/4 turn ball stop allows you to turn off the water to one source while working on another. For instance, you can still run hot water out of your faucet, but turn off the water supply to your dishwasher and not require two separate stops to do it. Saves you installation time and money.

QTY
  • Features
  • Videos
  • Independent flow control, dual outlet, dual shut-off operation permits you to shut-off water flow to one fixture while maintaining water flow to another fixture
  • Code approved replacement where separate shut-offs are required for two lines
  • Straight inlet to outlet design (same-side outlets) is great for installations in tight spaces
  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • Knurled oval handle provides a secure grip and smooth on/off operation
  • Easy-to-remove handle with screw attachment protects accidental stop operation during rough-in
  • For use with water in accessible locations only
  • Not intended for recirculating water systems that produce continuous use temperatures above 115 deg F
  • Rough brass finish
  • Standard/Approvals: ASME A112.18.1, ASTM F1807, CSA B125.1, CSA File No.0645/204593, cSAus Certified, IAPMO Listed, UPC Certified
