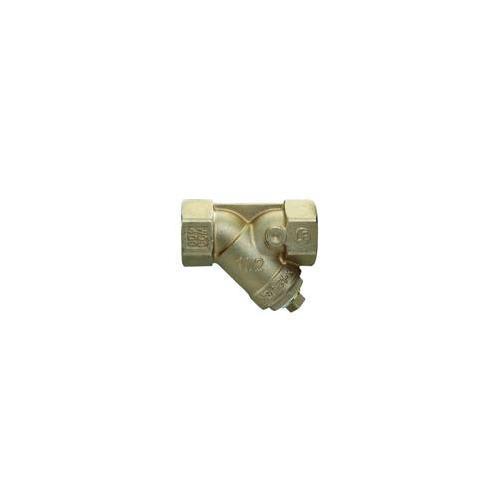

Febco® 0122979 LF650A Wye-Pattern Strainer, 1-1/2 in, FNPT, 4-7/8 in OAL, Cast Copper Silicon Alloy

1155632 MFG #: 0122979
$102.50 / ea
  • Blow-Off Size: 3/4 in NPT
  • Connection Type: FNPT
  • Material: Cast Copper Silicon Alloy
  • Nominal Size: 1-1/2
  • Overall Length: 4-7/8
  • Series: LF650A

Febco® Wye-Pattern Strainer, Series: LF650A, 1-1/2 in Nominal, 4-7/8 in Overall Length, FNPT, 3/4 in NPT Blow-Off Size, Cast Copper Silicon Alloy

This 1-1/2 in lead free wye pattern strainer is designed to be installed in the water piping systems to protect expensive equipment such as backflow preventers from damage or failure that can be caused by foreign material in the pipeline. It consists of a lead free body, tapped retainer cap with closure plug, gasket and 304 stainless steel recessed screen seats for accurate screen alignment. The maximum working pressure is 200 psi.

QTY
  • Features
  • Tapped blow down port
  • Tapped retainer cap with closure plug
  • 304 stainless steel 20 mesh screen
  • Cast copper silicon alloy cap/cover
  • 400 psi at 210 deg F WOG, 125 psi at 353 deg F WSP maximum working pressure
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
