BrassCraft®

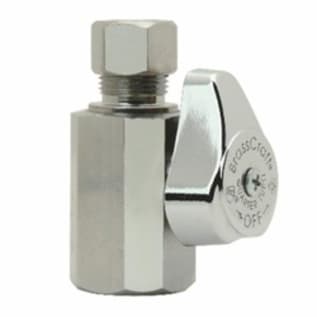

BrassCraft® G2R12X C G2™ 1/4 Turn Straight Stop, 1/2 x 3/8 in, FNPT x Compression, 125 psi, Brass Body, Domestic

1152961 MFG #: G2R12X C
$24.92 / ea
  • Body Material: Brass
  • Dimensions: 1.03 x 2.03
  • Domestic/Import: Domestic
  • End Style: FNPT x Compression
  • Finish: Polished Chrome
  • Media: Water
  • Nominal Size: 1/2 x 3/8
  • Pressure Rating: 125
  • Series: G2™
  • Softgoods Material: Santoprene Stem Barrel/EPDM Stem O-Ring
  • Temperature Rating: 40 to 140
  • Trim Material: C36000 Brass
  • Type: 1/4 Turn

BrassCraft® Straight Stop, 1/4 Turn, Series: G2™, 1/2 x 3/8 in Nominal, FNPT x Compression, 125 psi, Media: Water, Brass Body, C36000 Brass Trim, Santoprene Stem Barrel/EPDM Stem O-Ring, 40 to 140 deg F, 1.03 x 2.03 in, Domestic

Manufactured to the highest quality standards, G2™ Series 1/4 turn stops offer reliable performance, superior quality and an exceptional value. These stops provide, fast, convenient and reliable 1/4 turn operation with positive shut-off.

QTY
  • Features
  • One-piece shut-off mechanism provides smooth on-off operation without freeze ups even after long periods of non-use
  • Positive 1/4 turn shut-off
  • Full flow operation with no waterway obstructions
  • Corrosion-resistant handle is plated in an attractive chrome plated finish
  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • Easy-to-remove handle with screw attachment protect against accidental stop operation during rough-in
  • 100 percent leak tested
  • Not intended for recirculating water systems
  • Push connect technology
  • Installation ready with pre-assembled tube insert
  • No special installation tools required
  • Chrome plated finish
  • For use with Copper, PEX and CPVC
  • Standard/Approvals: ASME A112.18.1, CSA B125.1 File No.0645/204593, IAPMO Listed
