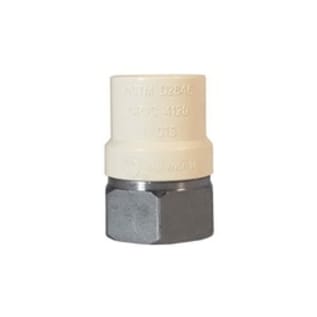

LEGEND 302-445 Pipe Adapter, 1 in Nominal, FNPT x CPVC End Style, 304 Stainless Steel, Import
LEGEND Pipe Adapter, Lead Free, Fitting/Connector Type: Adapter, 1 in Nominal, FNPT x CPVC, 1.55 in Hex, 2.26 in Length, 100 psi, 304 Stainless Steel, 180 deg F, Import
Documents
- Permits simple and convenient transition between threaded piping and CPVC tubing
- Mold-over, channel-set o-ring seal design between the CPVC resin and stainless steel provides a positive, leak free seal and is superior to adhesive-type or mechanical crimp designs
- Eliminates the need for multiple adapters and subsequently, their additional leak paths and run length, ideal for confined applications
- Naturally lead free
- Virgin CPVC-41 resin, TempRite® 88096 solvent weld socket tubing adapters, NBR (Buna-N) rubber o-ring, investment cast stainless steel pipe thread adapters
- Standard/Approvals: ANSI/ASME B1.20.1|ANSI/NSF 14|ASTM D2846/D1784 Class 23447|UPC/IAPMO Certified
- WARRANTY: 5/25 Years
LEGEND Pipe Adapter, Lead Free, Fitting/Connector Type: Adapter, 1 in Nominal, FNPT x CPVC, 1.55 in Hex, 2.26 in Length, 100 psi, 304 Stainless Steel, 180 deg F, Import
Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.
- Brand:Â LEGENDDomestic/Import:Â ImportEnd Style:Â FNPT x CPVCFitting/Connector Type:Â AdapterHex Size:Â 1.55Length:Â 2.26Material:Â 304 Stainless SteelNominal Size:Â 1Pressure Rating:Â 100Temperature Rating:Â 180
