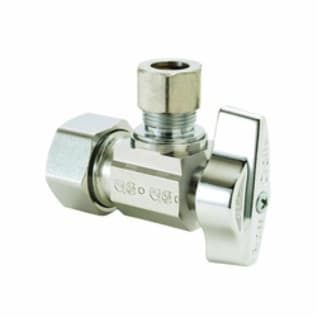

BrassCraft® KTCR09X C 1/4 Turn Angle Ball Stop Valve, 1/2 x 1/4 in, C x C, Brass Body

1151459 MFG #: KTCR09X C
$35.61 / ea
  • Body Material: Brass
  • Dimensions: 2.36 in W
  • End Style: C
  • Finish: Polished Chrome
  • Media: Water
  • Nominal Size: 1/2 x 1/4
  • Pressure Rating: 125
  • Series: KTCR09
  • Softgoods Material: PTFE/FKM/Nitrile
  • Temperature Rating: 40 to 180
  • Trim Material: DZR Brass
  • Type: 1/4 Turn

BrassCraft® Ball Stop Valve, 1/4 Turn Angle, Series: KTCR09, 1/2 x 1/4 in Nominal, C x C, 125 psi, 40 to 180 deg F, Media: Water, Handle Actuator, Brass Body, DZR Brass Trim, PTFE Seat/FKM/Nitrile O-Ring, Chrome Plated, 2.36 in W

BrassCraft 1/2 in nominal compression inlet x 1/4 in OD compression outlet 1/4-turn angle ball valve controls water flow to household plumbing fixtures - faucets, toilets, dishwashers, icemakers, washing machines, etc. The angle valve is most often used where the water pipe enters the room from the wall. With a 90 degree turn of the valve handle, you are able to stop the flow of water leading to the plumbing fixture, allowing for maintenance and repair without shutting off the water to the entire home.

  • Features
  • Machined body provides strength, durability and long-lasting performance
  • Compatible with copper or PEX (PEX installations require a stainless steel tube insert)
  • Smooth, quarter-turn operation, on/off flow control with a 90 degree turn of the handle
  • Brass ball ensures smooth operation without freeze-ups even after long periods without use
  • Easy-to-remove handle protects against accidental operation during rough-ins
  • 100% leak tested
  • No-lead certified
  • Precision-machined brass ball is specially engineered and mated with PTFE seats to provide smooth operation without freeze ups even after long periods of non-use
  • TWO high-performance o-rings withstand high temperatures and corrosion from harsh water environments
  • Machined one-piece brass body provides strength, durability and long-lasting performance
  • Blow-out proof brass stem is assembled from the inside out with two o-rings to ensure safe, reliable performance
  • Plated stem provides corrosion resistance and prevents o-ring damage after long periods of non-use
  • Patented, chrome plated metal handle is designed for durability, corrosion resistance and a sleek appearance
  • Easy-to-remove handle with screw attachment protects accidental stop operation during rough-ins
  • Standard/Approvals: cCSAus ASME A112.18.1-05/B125.1-05 file no 204593, cIAPMOus ASME A112.18.1/CSA B125.1 file no 0645
