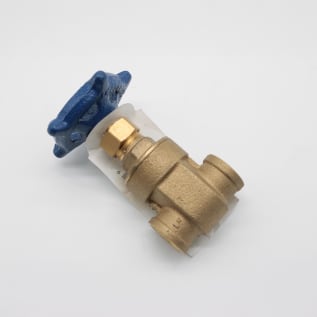

LEGEND 104-723NL S-408NL Economy Gate Valve, 1/2 in Nominal, C End Style, Brass Body, Handwheel Actuator, Import
LEGEND Gate Valve, Economy, Series: S-408NL, 1/2 in Nominal, C End Style, 200 psi Pressure, Full Port, Media: Water, Handwheel Actuator, 1.69 in Inlet to Outlet Length, 2.92 in Top to Inlet Center, Brass Body, Brass Trim, Graphite Stem Packing Softgoods, 2.01 in Diameter Hand Wheel, Import
Documents
- Durable, all brass body construction
- Full flow waterway reduces pressure drop
- Non-rising stem design is compact and reliable
- Solid, fully-guided disc-wedge opens completely out of the flow path
- Integral seats are precision-ground to match each disc-wedge
- Not suitable for steam service
- Brass packing nut, disc locknut, wheel nut, cast iron handwheel
- Lead free
- Cast brass body
- Standard/Approvals: ANSI/ASME B1.20.1 and ASME B16.18|cUPC/IAPMO 6127|ISO 9002 Certified|NSF 61-G
- WARRANTY: 5/25 Years
LEGEND Gate Valve, Economy, Series: S-408NL, 1/2 in Nominal, C End Style, 200 psi Pressure, Full Port, Media: Water, Handwheel Actuator, 1.69 in Inlet to Outlet Length, 2.92 in Top to Inlet Center, Brass Body, Brass Trim, Graphite Stem Packing Softgoods, 2.01 in Diameter Hand Wheel, Import
Legend offers more than 9,000 products representing 80 plus product classes designed for residential, commercial and industrial applications. Everything you many need for behind the wall, Legend has the most expansive offering of valves, fittings, tubing and components for plumbing and hydronic systems.
- Brand:Â LEGENDActuator Type:Â HandwheelBody Material:Â BrassDomestic/Import:Â ImportEnd Style:Â CHand Wheel Diameter:Â 2.01Inlet to Outlet Length:Â 1.69Media:Â WaterNominal Size:Â 1/2Port Type:Â FullPressure Rating:Â 200Series:Â S-408NLSoftgoods Material:Â Graphite Stem PackingTop to Inlet Center:Â 2.92Trim Material:Â BrassType:Â Economy
