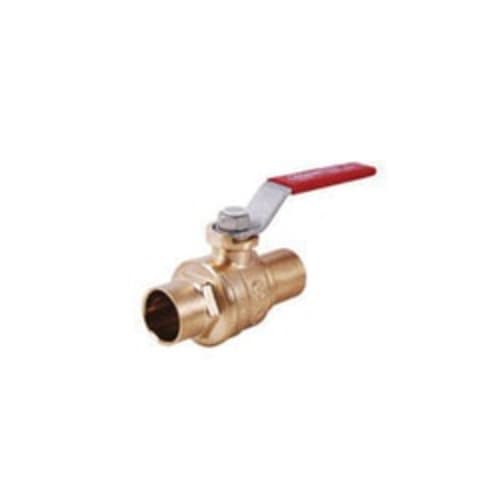

LEGEND 101-046NL S-1001NL Ball Valve, 1-1/4 in, C, Brass Body, Full Port, Import
Ball Valves
MPN: 1147937 3532470 MFG #: 101-046NL
61.93000 / ea

LEGEND Ball Valve, Series: S-1001NL, 1-1/4 in Nominal, C, 600 psi, 250 deg F, 113.24 gpm, Full Port, Media: Water, Handle Actuator, Brass Ball, 4.31 in Inlet to Outlet Length, 2.24 in Top to Inlet Center, Brass Body, Brass Trim, TFM PTFE Thrust Seat, Thrust Washer, Chrome Plated, Import

The 1001 Series Full Port Ball Valves are Maintenance-Free because the stem seals with two FKM O-rings instead of the traditional gland follower or packing gland design. No call backs are necessary to tighten a packing nut. The bottom loaded stem is blowout proof and includes a PTFE thrust washer that reduces friction and makes for easier actuation. The valve body, end adaptor and cavity ball are forged brass for lighter weight and greater durability, resulting in less torque necessary to actuate the valve and longer life for the seats. The steel handle is Dacromet® coated and will not corrode in aggressive environments. Every valve is manufactured to precise tolerances in a completely automated ISO certified factory and 100% pressure tested. The 1001 Series of ball valves are offered in a variety of configurations for residential, commercial and industrial applications. The T/S-1001 is constructed of UNS C37700 forged brass. The T/S-1001NL is constructed of no lead binary brass alloy.

QTY
  • Features
  • Dacromet coated steel, tamper-evident handwheel nut/handle/locking device, FKM fluoroelastomer stem o-rings, Dyneon® TFM® PTFE anti-friction washer/thrust washer, lead free forged brass stem/ball/body/end adapter
  • Steel handle is Dacromet® coated and will not corrode in aggressive environments
  • Valve body, end adaptor and cavity ball are forged brass for lighter weight and greater durability, resulting in less torque necessary to actuate the valve and longer life for the seats
  • O-ring stem design, lighter weight and durable forged no lead brass body, blow-out proof stem, PTFE seats for improved wear
  • Does not require any additional steps to solder, as compared to traditional brass valves
  • Bottom loaded stem is blowout proof and includes a PTFE thrust washer that reduces friction and makes for easier actuation
  • CSA certified for use with natural, manufactured, mixed, liquid petroleum and lp gas air mixtures
  • Factory mutual approved for fire protection service
  • Maintenance free valve
  • Standard/Approvals: ANSI/ASME B1.20.1, ANSI/ASME B16.33, ANSI/NSF Standard 61-G, MSS SP-110, CSA Certified, U.S. Federal Public Law 111-380, FM Approved, UL Listed 44R8, UL Listed 757X
  • WARRANTY: 5/25 Years
