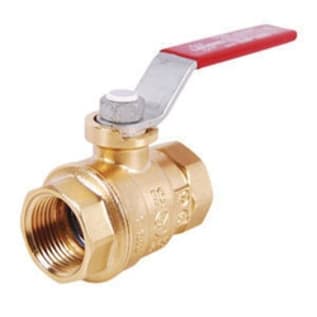

LEGEND 101-025NL T-1001NL Ball Valve, 1 in Nominal, FNPT End Style, Brass Body, Full Port, TFM/PTFE Softgoods, Import

1147930 MFG #: 101-025NL
$41.94 / ea
LEGEND 101-025NL T-1001NL Ball Valve, 1 in Nominal, FNPT End Style, Brass Body, Full Port, TFM/PTFE Softgoods, Import
  • Actuator Type: Quarter Turn Handle
  • Ball Material: Brass
  • Body Material: Brass
  • Domestic/Import: Import
  • End Style: FNPT
  • Inlet to Outlet Length: 2.91
  • Media: Air/Gas/Oil/Water
  • Nominal Size: 1
  • Port Type: Full
  • Pressure Rating: 600
  • Series: T-1001NL
  • Softgoods Material: TFM/PTFE
  • Temperature Rating: 250
  • Top to Inlet Center: 2.05
  • Trim Material: Brass Stem and PTFE Seat

LEGEND Ball Valve, Lead Free, Series: T-1001NL, 1 in Nominal, FNPT, 600 psi, 250 deg F, Full Port, Media: Air/Gas/Oil/Water, Quarter Turn Handle Actuator, Brass Ball, 2.91 in Inlet to Outlet Length, 2.05 in Top to Inlet Center, Brass Body, Brass Stem and

The 1001 Series Full Port Ball Valves are Maintenance-Free because the stem seals with two FKM O-rings instead of the traditional gland follower or packing gland design. No call backs are necessary to tighten a packing nut. The bottom loaded stem is blow-

QTY
Add to List
  • Features
  • Videos
  • Dacromet® coated steel, tamper-evident handwheel nut/handle/locking device, FKM fluoroelastomer stem O-Rings, Dyneon® TFM® PTFE anti-friction washer/thrust washer, Lead free forged brass stem/ball/body/end adapter
  • Steel handle is Dacromet® coated and will not corrode in aggressive environments
  • Valve body, end adaptor and cavity ball are forged brass for lighter weight and greater durability, resulting in less torque necessary to actuate the valve and longer life for the seats
  • O-Ring stem design, lighter weight and durable forged no lead brass body, Blow-out proof stem, PTFE seats for improved wear
  • Does not require any additional steps to solder, as compared to traditional brass valves
  • Bottom loaded stem is Blow-out proof and includes a PTFE thrust washer that reduces friction and makes for easier actuation
  • CSA certified for use with natural, manufactured, mixed, liquid petroleum and lp/gas air mixtures
  • Lead free design is suitable for all no lead potable water installations in full compliance of all Lead free plumbing laws
  • Factory mutual approved for fire protection service
  • Maintenance-free valve
  • TFM/PTFE thrust washer
  • Standard/Approvals: ANSI/ASME B1.20.1|ANSI/ASME B16.33|ANSI/NSF Standard 61-G|MSS SP-110|CSA Certified|U.S. Federal Public Law 111-380|FM Approved|UL Listed 44R8|UL Listed 757X
  • WARRANTY: 5/25 Years
