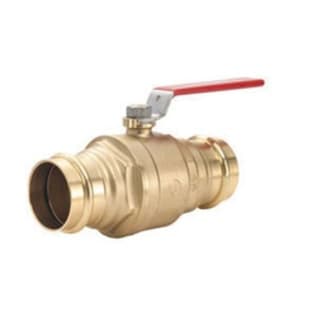

LEGEND LegendPress™ 101-008NL P-200NL Specialty Ball Valve, 2 in Nominal, Press End Style, Brass Body, Full Port, TFM/PTFE/FKM Fluoroelastomer Softgoods, Import
LEGEND LegendPress™ Specialty Ball Valve, Lead Free, Series: P-200NL, 2 in Nominal, Press, 400 psi, 230 deg F, Full Port, Media: Water, Lever Operated Actuator, Brass Ball, 7.33 in Inlet to Outlet Length, 3.08 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, TFM/PTFE/FKM Fluoroelastomer, Polished Chrome, 9.15 in W x 4.76 in H, Import
Documents
- Chrome plated Lead free forged brass ball, dacromet coated steel handle nut, Lead free forged brass end adapter/stem, commercial grade EPDM socket O-Rings, Dyneon® TFM® PTFE anti-friction washer, chrome plated stem
- Ball valve has the same proven FKM O-Ring stem design that eliminates the need for a packing gland and nut
- Corrosion resistant Dacromet® coated steel handle and oversized lever handle with per-drilled tag hole is ideal for commercial plumbing applications
- Press sockets have greater depth for stabilizing the copper when pressing which assures a solid connection
- O-Rings for added assurance that a seal is made when pressed
- Press-type end connections eliminate the need for soldering and brazing, reducing labor and material costs and eliminating the fire hazard associated with the process
- Strip gauge included, to verify a complete press
- For all no lead potable water installations in full compliance of all Lead free plumbing laws
- Maintenance-free valve
- TFM/PTFE thrust washer and FKM fluoroelastomer stem O-ring
- Standard/Approvals: ANSI/ASME B1.20.1|NSF 61-G Listed
- INCLUDES: Strip Gauge
- WARRANTY: 5/25 Years
LEGEND LegendPress™ Specialty Ball Valve, Lead Free, Series: P-200NL, 2 in Nominal, Press, 400 psi, 230 deg F, Full Port, Media: Water, Lever Operated Actuator, Brass Ball, 7.33 in Inlet to Outlet Length, 3.08 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, TFM/PTFE/FKM Fluoroelastomer, Polished Chrome, 9.15 in W x 4.76 in H, Import
The Legend P-200NL series of press-to-connect ball valves offers the same reliability you've come to expect from the T/S-1001, the preferred ball valve for thousands of contractors. The P-200NL No Lead LegendPress™ Ball Valve has the same proven FKM O-ring stem design that eliminates the need for a packing gland and nut. LegendPress™ reduces labor and call backs. Compatible with VUS/XL-C profile jaws. The P-200NL press sockets have greater depth for stabilizing the copper when pressing which assures a solid connection. The press sockets have two EPDM O-rings for added assurance that a seal is made when pressed.
- Brand: LEGENDActuator Type: Lever OperatedBall Material: BrassBody Material: BrassDimensions: 9.15 in W x 4.76 in HDomestic/Import: ImportEnd Style: PressFinish: Polished ChromeInlet to Outlet Length: 7.33Media: WaterNominal Size: 2Port Type: FullPressure Rating: 400Series: P-200NLSoftgoods Material: TFM/PTFE/FKM FluoroelastomerTemperature Rating: 230Top to Inlet Center: 3.08Trim Material: Brass Stem and PTFE Seat
LEGEND LegendPress™ 101-008NL P-200NL Specialty Ball Valve, 2 in Nominal, Press End Style, Brass Body, Full Port, TFM/PTFE/FKM Fluoroelastomer Softgoods, Import
LEGEND LegendPress™ Specialty Ball Valve, Lead Free, Series: P-200NL, 2 in Nominal, Press, 400 psi, 230 deg F, Full Port, Media: Water, Lever Operated Actuator, Brass Ball, 7.33 in Inlet to Outlet Length, 3.08 in Top to Inlet Center, Brass Body, Brass Stem and PTFE Seat Trim, TFM/PTFE/FKM Fluoroelastomer, Polished Chrome, 9.15 in W x 4.76 in H, Import
