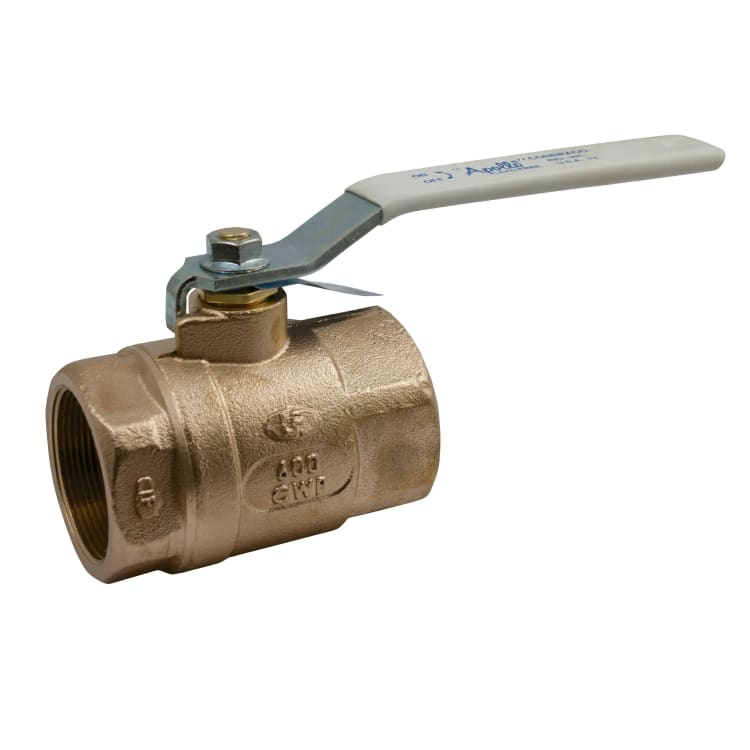

Apollo™ 70LF10801 70LF-100 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, Lead Free Bronze Body, Regular Port, RPTFE Softgoods, Domestic
Apollo™, 70LF10801, Ball Valve, 2-Piece, Series: 70LF-100, 2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 350 deg F, Regular Port, Media: Water, Lever Operated Actuator, 4.68 in Inlet to Outlet Length, 3-1/4 in Top to Inlet Center, Lead Free Bronze Body, Brass Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic
- Easily identifiable blue Lead free hang tag
- RPTFE seats and stuffing box ring
- 100% factory tested
- Vacuum service to 29 in Hg
- Steel, zinc plated with vinyl lever and grip
- UNS C89836 Lead free bronze retainer
- ASTM B16 brass gland nut
- Steel, zinc plated lever nut
- 150 psig steam working pressure
- Standard/Approvals: MSS SP-110|NSF/ANSI 61-8|Annex G|NSF/ANSI 372|ANSI 3RD Party Certified|CRN OC10908.5C|NSF 372|Drinking Water System Components Lead Content|UNS C27451 Ball|UNS C89836 Retainer|PROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- WARRANTY: 5 Years
Apollo™, 70LF10801, Ball Valve, 2-Piece, Series: 70LF-100, 2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 350 deg F, Regular Port, Media: Water, Lever Operated Actuator, 4.68 in Inlet to Outlet Length, 3-1/4 in Top to Inlet Center, Lead Free Bronze Body, Brass Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic
The Apollo™ 70LF Series has the same rugged features as the industry standard 70 Series valves with the added advantage of Lead Free materials. The 70LF is ideal for plumbing and heating systems, including potable water. Trusted Apollo™ performance with a wide range of popular options.
- Brand: Apollo™Actuator Type: Lever OperatedBall Material: Chrome Plated BrassBody Material: Lead Free BronzeDomestic/Import: DomesticEnd Style: FNPTInlet to Outlet Length: 4.68Media: WaterNominal Size: 2Port Type: StandardPressure Rating: 600 psig CWPSeries: 70LF-100Softgoods Material: RPTFETemperature Rating: 450Top to Inlet Center: 3-1/4Trim Material: Brass Stem and RPTFE SeatType: 2-Piece
Apollo™ 70LF10801 70LF-100 2-Piece Ball Valve, 2 in Nominal, FNPT End Style, Lead Free Bronze Body, Regular Port, RPTFE Softgoods, Domestic
Apollo™, 70LF10801, Ball Valve, 2-Piece, Series: 70LF-100, 2 in Nominal, FNPT End Style, 600 psi CWP Pressure, 350 deg F, Regular Port, Media: Water, Lever Operated Actuator, 4.68 in Inlet to Outlet Length, 3-1/4 in Top to Inlet Center, Lead Free Bronze Body, Brass Stem/RPTFE Seat Trim, RPTFE Softgoods, Domestic
