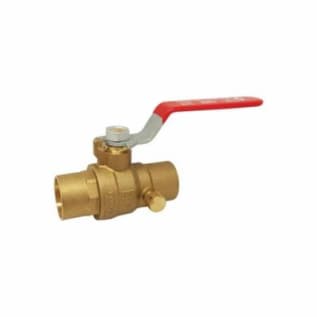

RWV® 5063AB 1 2-Piece Ball Valve With Handle and Drain, 1 in Nominal, Solder End Style, Brass Body, Full Port, PTFE Softgoods
RWV® Ball Valve, Lead Free 2-Piece, Series: 5063AB, 1 in Nominal, Solder, 600 lb WOG, 15 to 160 deg F, Full Port, 0.98 in Orifice, Chrome Plated Low Lead Brass Ball, 1.128 to 1.131 in Inlet to Outlet Length, 2.57 in Top to Inlet Center, Brass Body, Low Lead Brass Stem and PTFE Seat Trim, PTFE Softgoods
Documents
- Blow-out proof stem
- Adjustable packing nut
- Drain port on body
- PTFE packing
- Standard/Approvals: AB1953|ANSI/NSF 61-G/61<5|NSF-372|MSS-SP-110|CW510L Body/Ball/Stem
RWV® Ball Valve, Lead Free 2-Piece, Series: 5063AB, 1 in Nominal, Solder, 600 lb WOG, 15 to 160 deg F, Full Port, 0.98 in Orifice, Chrome Plated Low Lead Brass Ball, 1.128 to 1.131 in Inlet to Outlet Length, 2.57 in Top to Inlet Center, Brass Body, Low Lead Brass Stem and PTFE Seat Trim, PTFE Softgoods
- Brand: RWV®Ball Material: Chrome Plated Low Lead BrassBody Material: BrassEnd Style: SolderInlet to Outlet Length: 1.128 to 1.131Nominal Size: 1Orifice Size: 0.98Port Type: FullPressure Rating: 600 lb WOGSeries: 5063ABSoftgoods Material: PTFETemperature Rating: 15 to 160Top to Inlet Center: 2.57Trim Material: Low Lead Brass Stem and PTFE SeatType: 2-Piece
RWV® 5063AB 1 2-Piece Ball Valve With Handle and Drain, 1 in Nominal, Solder End Style, Brass Body, Full Port, PTFE Softgoods
RWV® Ball Valve, Lead Free 2-Piece, Series: 5063AB, 1 in Nominal, Solder, 600 lb WOG, 15 to 160 deg F, Full Port, 0.98 in Orifice, Chrome Plated Low Lead Brass Ball, 1.128 to 1.131 in Inlet to Outlet Length, 2.57 in Top to Inlet Center, Brass Body, Low Lead Brass Stem and PTFE Seat Trim, PTFE Softgoods
