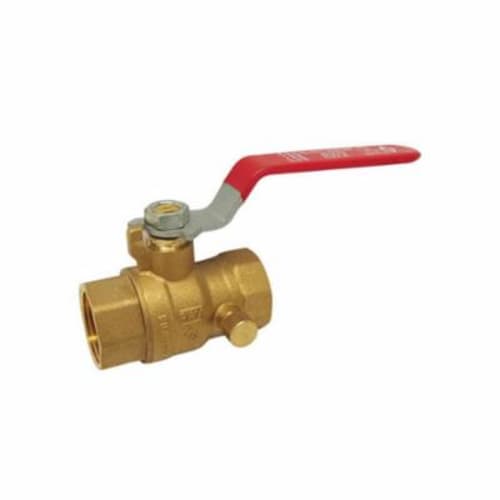

RWV® 5060AB 1/2 1-Piece Ball Valve With Handle and Drain, 1/2 in Nominal, Thread End Style, Brass Body, Full Port, PTFE Softgoods
RWV® Ball Valve, 1-Piece, Series: 5060AB, 1/2 in Nominal, Thread End Style, 600 lb WOG Pressure, 15 to 160 deg F, Full Port, 0.59 in Orifice, Chrome Plated Low Lead Brass Ball, 2.42 in Inlet to Outlet Length, 2.13 in Top to Inlet Center, Brass Body, Low Lead Brass Stem and PTFE Seat Trim, PTFE Softgoods
Documents
- Blow-out proof stem
- Adjustable packing nut
- Drain port on body
- PTFE packing
- Standard/Approvals: AB1953|ANSI/NSF 61<5|NSF-372|MSS-SP-110|CW510L Body/Ball/Stem
RWV® Ball Valve, 1-Piece, Series: 5060AB, 1/2 in Nominal, Thread End Style, 600 lb WOG Pressure, 15 to 160 deg F, Full Port, 0.59 in Orifice, Chrome Plated Low Lead Brass Ball, 2.42 in Inlet to Outlet Length, 2.13 in Top to Inlet Center, Brass Body, Low Lead Brass Stem and PTFE Seat Trim, PTFE Softgoods
- Brand: RWV®Ball Material: Chrome Plated Low Lead BrassBody Material: BrassEnd Style: ThreadInlet to Outlet Length: 2.42Nominal Size: 1/2Orifice Size: 0.59Port Type: FullPressure Rating: 600 lb WOGSeries: 5060ABSoftgoods Material: PTFETemperature Rating: 15 to 160Top to Inlet Center: 2.13Trim Material: Low Lead Brass Stem and PTFE SeatType: 1-Piece
RWV® 5060AB 1/2 1-Piece Ball Valve With Handle and Drain, 1/2 in Nominal, Thread End Style, Brass Body, Full Port, PTFE Softgoods
RWV® Ball Valve, 1-Piece, Series: 5060AB, 1/2 in Nominal, Thread End Style, 600 lb WOG Pressure, 15 to 160 deg F, Full Port, 0.59 in Orifice, Chrome Plated Low Lead Brass Ball, 2.42 in Inlet to Outlet Length, 2.13 in Top to Inlet Center, Brass Body, Low Lead Brass Stem and PTFE Seat Trim, PTFE Softgoods
