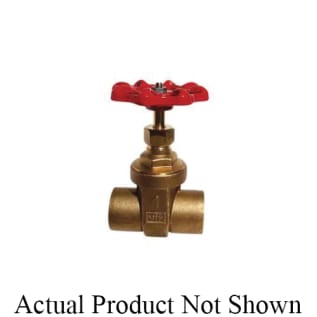

RWV® 207AB 2 Gate Valve, 2 in Nominal, Solder End Style, Brass Body, Handwheel Actuator
RWV® Gate Valve, Series: 207AB, 2 in Nominal, Solder End Style, 200 lb WOG/125 lb WSP Pressure, Handwheel Actuator, 3.23 in Inlet to Outlet Length, 6.27 in Top to Inlet Center, Brass Body, Aluminum/Brass Trim, Graphite Packing Ring Softgoods, 4.13 in Diameter Hand Wheel
Documents
- Non-rising stem
- Screw in bonnet
- Solid wedge disc
- Standard/Approvals: AB1953|NSF 61/372|C28500 Body/Stem|WRAS Approved Packing Ring|B85 Disc/Handwheel
RWV® Gate Valve, Series: 207AB, 2 in Nominal, Solder End Style, 200 lb WOG/125 lb WSP Pressure, Handwheel Actuator, 3.23 in Inlet to Outlet Length, 6.27 in Top to Inlet Center, Brass Body, Aluminum/Brass Trim, Graphite Packing Ring Softgoods, 4.13 in Diameter Hand Wheel
- Brand: RWV®Actuator Type: HandwheelBody Material: BrassEnd Style: SolderHand Wheel Diameter: 4.13Inlet to Outlet Length: 3.23Nominal Size: 2Pressure Rating: 200 lb WOG/125 lb WSPSeries: 207ABSoftgoods Material: Graphite Packing RingTop to Inlet Center: 6.27Trim Material: Aluminum/Brass
RWV® 207AB 2 Gate Valve, 2 in Nominal, Solder End Style, Brass Body, Handwheel Actuator
RWV® Gate Valve, Series: 207AB, 2 in Nominal, Solder End Style, 200 lb WOG/125 lb WSP Pressure, Handwheel Actuator, 3.23 in Inlet to Outlet Length, 6.27 in Top to Inlet Center, Brass Body, Aluminum/Brass Trim, Graphite Packing Ring Softgoods, 4.13 in Diameter Hand Wheel
