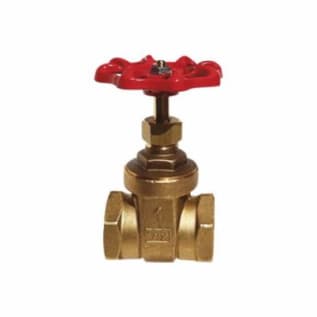

RWV® 206AB 1 Gate Valve, 1 in Nominal, Thread End Style, Brass Body, Handwheel Actuator
RWV® Gate Valve, Series: 206AB, 1 in Nominal, Thread End Style, 200 lb WOG/125 lb WSP Pressure, Handwheel Actuator, 2.44 in Inlet to Outlet Length, 3.93 in Top to Inlet Center, Brass Body, Aluminum/Low Lead Brass Trim, Graphite Packing Ring Softgoods, 2-3/4 in Diameter Hand Wheel
Documents
- Non-rising stem
- Screw in bonnet
- Solid wedge disc
- Standard/Approvals: AB1953|ANSI/NSF 61-G/372|TL Certified|C28500 Body/Stem|B85 Disc/Handwheel|WRAS Approved Packing Ring
RWV® Gate Valve, Series: 206AB, 1 in Nominal, Thread End Style, 200 lb WOG/125 lb WSP Pressure, Handwheel Actuator, 2.44 in Inlet to Outlet Length, 3.93 in Top to Inlet Center, Brass Body, Aluminum/Low Lead Brass Trim, Graphite Packing Ring Softgoods, 2-3/4 in Diameter Hand Wheel
- Brand: RWV®Actuator Type: HandwheelBody Material: BrassEnd Style: ThreadHand Wheel Diameter: 2-3/4Inlet to Outlet Length: 2.44Nominal Size: 1Pressure Rating: 200 lb WOG/125 lb WSPSeries: 206ABSoftgoods Material: Graphite Packing RingTop to Inlet Center: 3.93Trim Material: Aluminum/Low Lead Brass
RWV® 206AB 1 Gate Valve, 1 in Nominal, Thread End Style, Brass Body, Handwheel Actuator
RWV® Gate Valve, Series: 206AB, 1 in Nominal, Thread End Style, 200 lb WOG/125 lb WSP Pressure, Handwheel Actuator, 2.44 in Inlet to Outlet Length, 3.93 in Top to Inlet Center, Brass Body, Aluminum/Low Lead Brass Trim, Graphite Packing Ring Softgoods, 2-3/4 in Diameter Hand Wheel
