1133880

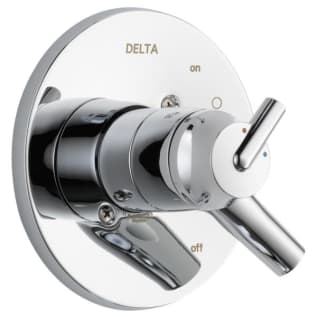

DELTA® T17059 Monitor® 17 Trinsic® Valve Trim, 2 gpm Shower, Chrome Plated
Shower/Tub Valves & Trims
MPN: 1133880 3318091 MFG #: T17059
165.95000 / ea

DELTA® Valve Trim, Series: Monitor® 17, Trinsic®, 2 gpm Shower Flow, Lever Handle, 6-1/2 in Dia Trim, Dual-Function Pressure Balanced Valve/Cartridge, 80 psi, Wall Mount, For Use With: MultiChoice® R10000 Series Universal Rough-In Valve Body, Brass, Chrome Plated, Domestic

Inspired by the sleek elegance of modern European design, the Trinsic® Bath Collection completes the look of any contemporary bath, from classic to rustic.

QTY
  • Features
  • Dial adjusts temperature - handle adjusts volume
  • Order MultiChoice® universal rough separately
  • Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
  • Field adjustable to limit handle rotation into hot water zone
  • Maximum diameter rotation adjustable between 90 deg and 180 deg
  • All parts are replaceable from the front of the valve
  • Red/blue pad print temperature indicators on the temperature adjustment diameter
  • 1/2 in CWT C and 1/2 in IPS threaded spout adapter
  • Stem extension kit RP77992 can be ordered to allow for an additional 1-3/4 in wall thickness
  • RP77992 ships with chrome escutcheon screws
  • For special finishes also order RP12630 escutcheon screws in desired finish
  • Standard/Approvals: ASME A112.18.1/CSA B125.1, ASSE 1016, ICC/ANSI A117.1, EPA WaterSense® Certified
  • WARRANTY: Limited Lifetime
