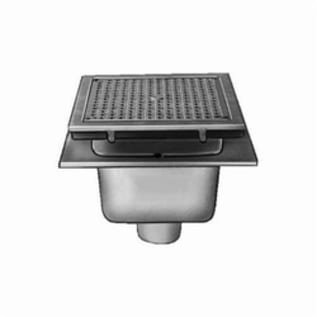

Smith® 3160Y04 (-12) Sanitary Floor Drain, 4 in Outlet, No-Hub Connection, 12-1/2 in, Cast Iron Drain

1130585 MFG #: 3160Y04 (-12)
$4,696.00 / ea
Smith® 3160Y04 (-12) Sanitary Floor Drain, 4 in Outlet, No-Hub Connection, 12-1/2 in, Cast Iron Drain
  • Connection Type: No-Hub
  • Dimensions: 14 x 14
  • Drain Material: Cast Iron
  • Grid Size: 12-1/2
  • Series: 3160
  • Outlet Size: 4

Smith® Sanitary Floor Drain, Series: 3160, 4 in Outlet, No-Hub Connection, Cast Iron Drain, 12-1/2 in Grid, 14 x 14 in Dimensions

Used in kitchens, hospitals, food markets, restaurants, schools and all types of food handling areas where the ultimate in sanitation is desirable and a medium capacity receptor is required.

QTY
Add to List
  • Features
  • 12: with nb rim and 1/2 grate
  • Cast iron flanged receptor with seepage holes, acid resistant coated interior, nickel bronze rim and secured grate
  • Aluminum dome bottom strainer or sediment bucket as indicated by figure number
  • Sani-ceptor® sanitary acid resistant coated sanitary floor and indirect waste drains with medium receptor, deep and extra deep receptor
  • Square nickel bronze top
  • 42 sq-in free area
  • 12-1/2 in square Grid
