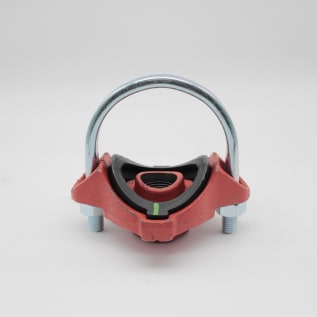

Gruvlok® 0390171148 FIG 7045 Clamp-T Branch Outlet, 3 x 1 in Nominal, FNPT Connection, Ductile Iron Clamp, Rust Inhibiting Painted, Domestic

112421 MFG #: 0390171148
$200.43 / ea
  • Bolt Material: Steel
  • Bolt Size: 1/2
  • Clamp Material: Ductile Iron
  • Color: Orange
  • Connection Type: FNPT
  • Dimensions: 7 in W x 3-3/4 in THK
  • Domestic/Import: Domestic
  • Finish: Rust Inhibiting Painted
  • Gasket Material: Grade E EPDM
  • Nominal Size: 3 x 1
  • Pressure Rating: 500
  • Series: FIG 7045
  • Temperature Rating: -40 to 230
  • Schedule Rating: SCH 40/STD

Gruvlok® Clamp-T Branch Outlet, Series: FIG 7045, 3 x 1 in Nominal, FNPT, SCH 40/STD, 500 psi, -40 to 230 deg F, 1/2 in Bolt, Steel Bolt, Ductile Iron Clamp, Grade E EPDM Gasket, 7 in W x 3-3/4 in THK, Orange, Rust Inhibiting Painted, Domestic

The Gruvlok® Clamp-T provides a quick and easy outlet at any location along the pipe. A hole drilled or cut in the pipe to receive the locating collar of the Clamp-T is all that is required. The full, smooth outlet area provides for optimum flow characteristics. The Clamp-T housing is specially engineered to conform to the pipe OD and the Clamp-T gasket providing a leak-tight reliable seal in both positive pressure and vacuum conditions. The maximum working pressure for all sizes is 500 psi (34.5 bar) when assembled on standard wall steel pipe. The Gruvlok® Clamp-T provides for a branch or cross connection in light wall or standard wall steel pipe. The Fig. 7045 Clamp-T female pipe thread branch is available with NPT or ISO 7/1 connection and the Fig. 7046 Clamp-T has grooved end branch connection. Clamp-T cross connections are available in various sizes allowing greater versatility in piping design.

  • Features
  • 1-1/2 in ID x 1-5/8 in OD
  • 3.5 x 1.315 in OD
  • Recommended for water service, diluted acids, alkalies solutions, oil-free air and many other chemical services
  • Not for use in petroleum application
  • Grade E EPDM green gasket
  • Standard/Approvals: ASTM A 536 Grade 65-45-12 Housing|ASTM A563 Grade A Heavy Hex Nuts|ASTM D 2000 Gasket|cULus Listed|FM Approved|NSF/ANSI 61|LPCB Approved|SAE J429 Grade 5 Bolts|UPC Listed|VdS Approved
  • INCLUDES: Zinc Electroplated Heavy Hex Nuts and Cold Drawn Steel Zinc Electroplated U-Bolts
