Mueller Co

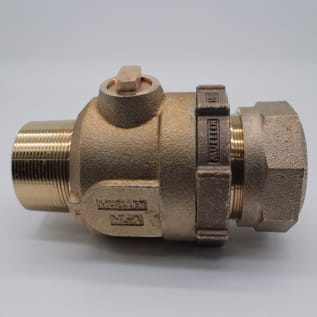

Mueller Co 300™ B-25028N 2 Ball Corporation Stop Valve, 2 in, AWWA IP Threaded Outlet x 110 CTS, Brass Body, EPDM/Nitrile Softgoods

1123062 MFG #: B-25028N 2
$530.16 / ea
  • Ball Material: Brass
  • Body Material: Brass
  • Dimensions: 4.263 in H
  • End Style: AWWA IP Threaded Outlet x 110 CTS
  • Nominal Size: 2
  • Orifice Size: 2
  • Pressure Rating: 300
  • Softgoods Material: EPDM/Nitrile
  • Top to Inlet Center: 2.443
  • Trim Material: Led Brass Alloy Stem

Mueller Co 300™ Ball Corporation Stop Valve, Lead Free, 2 in Nominal, AWWA IP Threaded Outlet x 110 CTS, 300 psi, 2 in Orifice, Brass Ball, 2.443 in Top to Inlet Center, Brass Body, Led Brass Alloy Stem Trim, EPDM/Nitrile Softgoods, 4.263 in H

Machine inserted corporation stops were developed by Hieronymus Mueller Co in conjunction with his development of the drilling and tapping machine used to make pressure taps in water mains. During the development of the machine inserted corporation stop, Mr. Mueller designed an inlet thread which became known as the Mueller Co or CC thread. This thread form was eventually adopted by the American Water Works Association and is listed in ANSI/AWWA Standard C800 as the AWWA Taper thread.

QTY
  • Features
  • Blow-out proof stem
  • Straight design: allows maximum flow with minimum pressure loss
  • Double O-Ring stem seals: Are supported in precision machined grooves and provide secure, leak tight sealing
  • Stainless steel reinforced seat seal assures reliable seal under full flow and pressure
  • End pieces O-Ring seals provides secondary seal to prevent leakage
  • 360 deg stem rotation
  • Fluorocarbon coated ball: ensures smooth, easy turning operation
  • AWWA IP thread outlet x 110® conductive compression CTS OD tubing
  • EPDM O-ring and nitrile seal
  • Standard/Approvals: ANSI/AWWA C800|NSF 61|US Federal Safe Drinking Water Act
