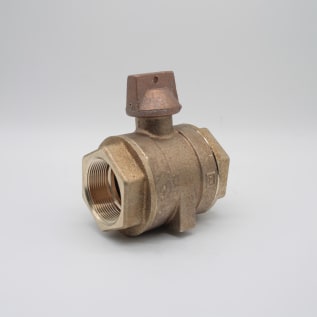

Mueller Co 300™ B-20283N 2 Ball Curb Valve, 2 in, FNPT, Brass Body, EPDM/Nitrile Softgoods
Mueller Co 300™ Ball Curb Valve, 2 in Nominal, FNPT, 300 psi, 2 in Orifice, Solid Brass Ball, 4.94 in Inlet to Outlet Length, 3.919 in Top to Inlet Center, Brass Body, Led Brass Alloy Stem Trim, EPDM/Nitrile Softgoods, 5.739 in H
Documents
- Blow-out proof stem
- Optimized key to ball connection
- Full thread depth
- Full roundway
- End pieces O-Ring seals provides secondary seal to prevent leakage
- Suitable for use as test valves on backflow preventers
- Quarter-turn check
- Fluorocarbon coated ball
- Stainless steel reinforced seat
- EPDM O-ring and nitrile seal
- Standard/Approvals: ANSI/AWWA C800|NSF 61|US Federal Safe Drinking Water Act
Mueller Co 300™ Ball Curb Valve, 2 in Nominal, FNPT, 300 psi, 2 in Orifice, Solid Brass Ball, 4.94 in Inlet to Outlet Length, 3.919 in Top to Inlet Center, Brass Body, Led Brass Alloy Stem Trim, EPDM/Nitrile Softgoods, 5.739 in H
The Mueller Co 300™ Ball Valve is an optimized design combining a strong, reliable ball/stem connection with other desired features, including a blow-out-proof stem, double O rings and a 300 psig working pressure rating. The design offers true bi-directional (two way) flow.
- Brand: Mueller CoBall Material: Solid BrassBody Material: BrassDimensions: 5.739 in HEnd Style: FNPTInlet to Outlet Length: 4.94Nominal Size: 2Orifice Size: 2Pressure Rating: 300Softgoods Material: EPDM/NitrileTop to Inlet Center: 3.919Trim Material: Led Brass Alloy Stem
