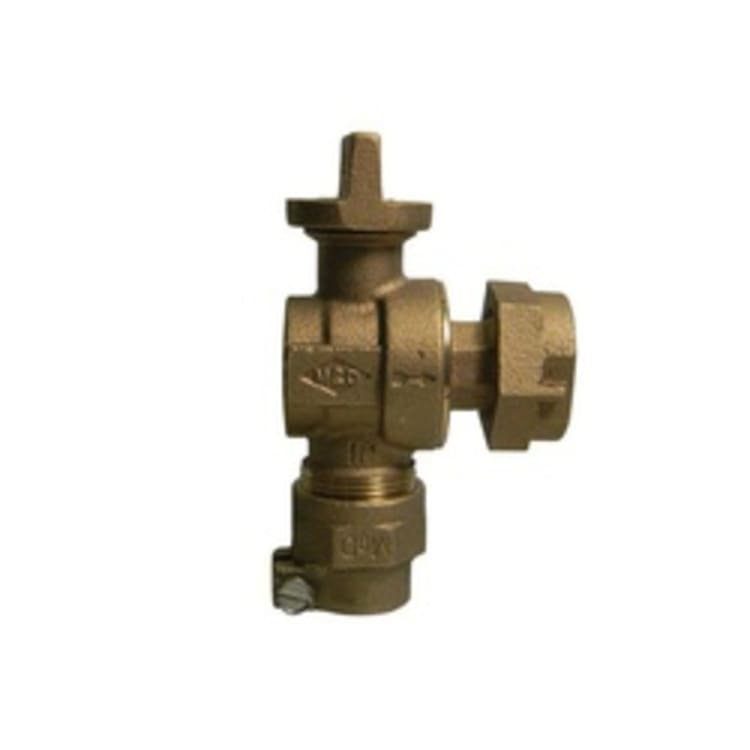

McDonald® 5149-317 74602B-33 Angle Ball Style Meter Stop, 3/4 in, -33 PEP Mac-Pak Compression x Meter Swivel Nut, Brass Body, Full Port

1115346 MFG #: 5149-317
$153.86 / ea
McDonald® 5149-317 74602B-33 Angle Ball Style Meter Stop, 3/4 in, -33 PEP Mac-Pak Compression x Meter Swivel Nut, Brass Body, Full Port
  • Actuator Type: Lockwing
  • Ball Material: PTFE Coated Brass
  • Body Material: Brass
  • Brand: McDonald®
  • Domestic/Import: Domestic
  • End Style: -33 PEP Mac-Pak Compression x Meter Swivel Nut
  • Manufacturer: A.Y. McDonald
  • Media: Water
  • Nominal Size: 3/4 in
  • Port Type: Full
  • Pressure Rating: 300 psig
  • Series: 74602B-33
  • Softgoods Material: EPDM O-Ring, Port Seal/Rubber Gasket
  • Type: Angle

McDonald® Ball Style Meter Stop, Angle, Series: 74602B-33, 3/4 in Nominal, -33 PEP Mac-Pak Compression x Meter Swivel Nut, 300 psig, Full Port, Media: Water, Lockwing Actuator, PTFE Coated Brass Ball, Brass Body, EPDM O-Ring, Port Seal/Rubber Gasket

Meter swivel nuts are less saddle unless otherwise indicated have internal straight threads per AWWA C700 and include hole for wire seal unless otherwise indicated. EPDM rubber gaskets are supplied and are standard. Fiber or leather gaskets sold separately.

QTY
Add to List
  • Features
  • Manufactured in compliance with ANSI/AWWA C800 (latest revision)
  • Brass components in contact with potable water conform to ASTM B584, UNS C89833 (latest revision) and identified with NL
  • Rated for 300 psig water pressure
  • Blow out proof EPDM port seals
  • End piece joint sealed with an EPDM O-ring and thread locker
  • Insert stiffeners required on all flexible plastic connections
  • No lead
  • Standard/Approvals: ANSI/AWWA C700/C800, ASTM B584, NSF/ANSI 61/372, UNS C89833
