A.Y. McDonald

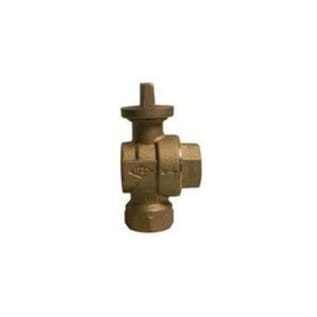

McDonald® 5139-041 74604BF Regular Pattern Angle Ball Style Meter Stop, 1 in, FNPT, Brass Body, Full Port

1114759 MFG #: 5139-041
$208.17 / ea
McDonald® 5139-041 74604BF Regular Pattern Angle Ball Style Meter Stop, 1 in, FNPT, Brass Body, Full Port
  • Body Material: Brass
  • End Style: FNPT
  • Nominal Size: 1
  • Pressure Rating: 300
  • Series: 74604BF
  • Softgoods Material: EPDM
  • Type: Ball Regular Pattern

McDonald® Ball Style Meter Stop, Regular Pattern Angle, Series: 74604BF, 1 in Nominal, FNPT, 300 psig, Full Port, Media: Water, PTFE Coated Brass Ball, Brass Body, EPDM O-Ring, Port Seal

McDonald® Ball Valve Curb Stops maintain their low turning torques and bubble-tight 300 psig water pressure rating due to the PTFE coated brass ball that is supported by two blow-out proof EPDM seals. McDonald® Ball Curb Stops offer positive shut-off from either direction and are available with a wide variety of end connections or Minneapolis Curb Box Threads. A brass 2" square operating head that is easily pinned to existing curb stops are available separately.

QTY
Add to List
  • Features
  • Manufactured in compliance with ANSI/AWWA C800 (latest revision)
  • Brass components in contact with potable water conform to ASTM B584, UNS C89833 (latest revision) and identified with NL
  • Rated for 300 psig water pressure
  • Blow out proof EPDM port seals
  • End piece joint sealed with an EPDM O-ring and thread locker
  • No lead
