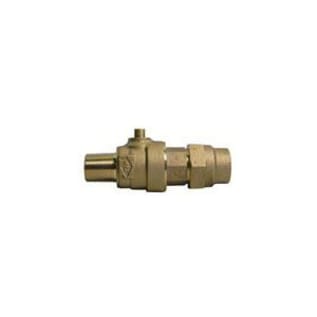

McDonald® 5192-016 Ball Style Corporation Stop, 1-1/2 in, MNPT x G CTS McGrip Compression 16P, Brass Body, Full Port, EPDM Softgoods

1114733 MFG #: 5192-016
$315.84 / ea
  • Ball Material: PTFE Coated Brass
  • Body Material: Brass
  • End Style: CTS PE COMP x MNPT
  • Nominal Size: 1-1/2
  • Port Type: Full
  • Pressure Rating: 300
  • Series: 74704BG
  • Softgoods Material: EPDM
  • Top to Inlet Center: 2.15

McDonald® Ball Style Corporation Stop, 1-1/2 in Nominal, MNPT x G CTS McGrip Compression 16P, 300 psig, Full Port, PTFE Coated Brass Ball, 2.15 in Top to Inlet Center, Brass Body, EPDM Softgoods

McDonald® Ball Valve Corporation Stops come standard with 360 deg operating head and are designed for low turning torques and high pressures (300 psig). The PTFE coated ball is supported by two blow-out proof EPDM seals. The end piece joint is sealed with an EPDM O-ring and thread locker. There is no metal-to-metal contact which causes high torques. The bubble-tight feature at 300 psig makes these valves a better choice than a plug valve when test or operating pressures over 100 psig are expected. All McDonald® Ball Valve Corporation Stops are available with a wide variety of end connections. They are made in the United States of America and are manufactured to meet or exceed the AWWA C800 (latest revision) standard, except where noted.

QTY
  • Features
  • Brass components in contact with potable water conform to ASTM B584, UNS C89833 (latest revision) and identified with NL
  • Blow-out proof EPDM port seals
  • End piece joint sealed with an EPDM O-Ring and thread locker
  • PTFE coated brass ball rotates 360 deg
  • Insert stiffeners are required on all flexible plastic connections
  • Operating head: standard
  • EPDM O-ring/port seal
  • Standard/Approvals: ANSI/AWWA C800|ASTM B584|NSF/ANSI 61/372|UNS C89833
