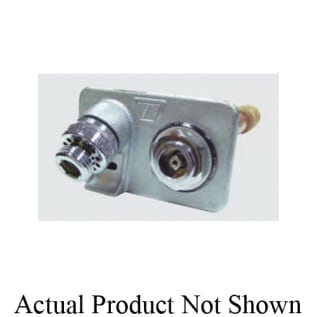

Woodford® 65P-10 Anti-Siphon Freezeless Automatic Draining Wall Hydrant, 3/4 in, FNPT, 10 in THK Wall, 125 psi, Domestic
Woodford® Automatic Draining Wall Hydrant, Anti-Siphon Freezeless, 3/4 in Nominal, FNPT End Style, 10 in Wall Thickness, 125 psi Pressure, 14 in Length, 120 deg F, Brass, Polished Chrome, Domestic
Documents
- Nidel® Model 34HA vacuum breaker with 3/4 in male hose thread nozzle
- Valve Seat: Permanent type brass valve body with hemispherical seating surface
- One piece valve plunger accurately controls both flow and drainage with a minimum number of turns and without need for adjustments
- Drain: Under nozzle away from hands of operator and with a lip to divert water away from building
- Copper tube casing
- No lead solder on all solder joints
- Hardened stainless steel stem resists damage
- Loose Tee key operates hydrant
- 3/8 in solid brass operating rod
- Wall clamp furnished on all 60 series except close coupled
- Exposed type wall hydrant
- Fits one standard modular brick course
- Red brass head and valve body
- Model 65
- Standard/Approvals: ASSE 1019-B|CSA Certified|IAPMO® Listed|UPC Certified|WW-P-541b
- WARRANTY: 5 Years Limited
Woodford® Automatic Draining Wall Hydrant, Anti-Siphon Freezeless, 3/4 in Nominal, FNPT End Style, 10 in Wall Thickness, 125 psi Pressure, 14 in Length, 120 deg F, Brass, Polished Chrome, Domestic
The Model B65 is an automatic draining, freezeless wall hydrant with hose connection Anti-Siphon Vacuum Breaker and housed in a tamper resistant brass box. The hydrant drains as handle is shut off, even if hose is attached. The Model B65 is designed to blend in with modern architecture for installation on restaurants, schools, office buildings, churches, apartments, motels, stores, shopping centers and industrial buildings.
- Brand: Woodford®Domestic/Import: DomesticEnd Style: FNPTFinish: Polished ChromeLength: 14Material: BrassNominal Size: 3/4Pressure Rating: 125Temperature Rating: 120Type: Anti-Siphon FreezelessWall Thickness: 10
