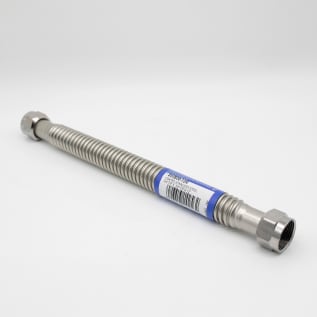

BrassCraft® SWB00-12N Water Heater Connector, 3/4 in Nominal, FNPT End Style, 12 in L, 125 psi Working, Stainless Steel, Domestic
BrassCraft® ProCoat® Lead Free Water Heater Connector, Series: SWB00, 3/4 in Nominal, FNPT, 3/4 in Inside Dia, 12 in Length, 125 psi Working, 40 to 180 deg F, Stainless Steel, Domestic
Documents
- Corrugated stainless steel delivers superior flexibility without kinking or flattening
- Full flow, maximum performance with a 3/4 in internal diameter
- Exclusive ProCoat® clear coat, provides superior corrosion resistance to deterioration from harsh chemicals, UV rays and salt
- Integrated dielectric sleeve isolates dissimilar metals within the waterway to help protect the connector from internal corrosion
- Requires less torque to seal with a pliable nitrile rubber washer, especially on rough nipple surfaces
- 100% leak tested
- Standard/Approvals: PROP65: This product can expose you to chemicals, including Nickel which are known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov.
BrassCraft® ProCoat® Lead Free Water Heater Connector, Series: SWB00, 3/4 in Nominal, FNPT, 3/4 in Inside Dia, 12 in Length, 125 psi Working, 40 to 180 deg F, Stainless Steel, Domestic
BrassCraft® ProCoat® 3/4 in Female Iron Pipe inlet x 3/4 in Female Iron Pipe outlet stainless steel connector. Used to connect the water supply to your water heater, this connector delivers outstanding flexibility with advanced corrosion resistance, both inside and outside. BrassCraft®'s patented integrated dielectric sleeve isolates dissimilar metals within the waterway, where galvanic and electrolytic corrosion have their greatest potential. This separation provides complete protection against galvanic corrosion that can deteriorate the connector and cause leaks. In addition, the integrated dielectric sleeve eliminates the need to install an additional dielectric union, reducing time and installation costs.
- Brand: BrassCraft®Domestic/Import: DomesticEnd Style: FNPTInside Diameter: 3/4Length: 12Material: Stainless SteelNominal Size: 3/4Series: SWB00Temperature Rating: 40 to 180Working Pressure: 125
