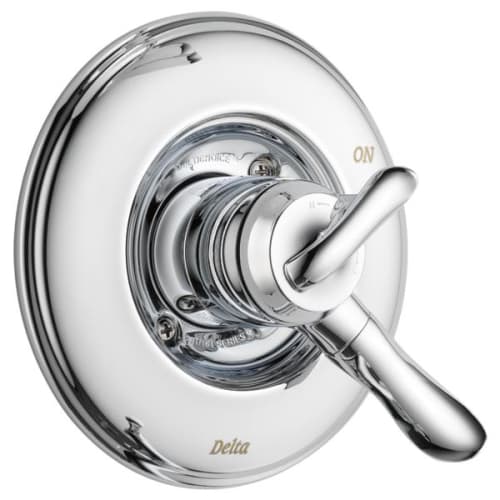

DELTA® T17094 Monitor® 17 Linden™ Valve Trim, 2 gpm Shower, Chrome Plated
Shower/Tub Valves & Trims
MPN: 1090295 3317703 MFG #: T17094
166.15000 / ea

DELTA® Valve Trim, Series: Monitor® 17, Linden™, 2 gpm Shower Flow, Lever Handle, 6-3/8 in Dia Trim, Pressure Balanced Valve/Cartridge, 2 Spray Functions, 80 psi, For Use With: MultiChoice® R10000 Series Universal Rough-In Valve Body, Brass, Chrome Plated, Domestic

Inspired by a strong presence in nature like that of a tree with reaching branches, the Linden bath collection features stylish flares and unexpected curves.

QTY
  • Features
  • Dual function pressure balance control - handle adjusts volume - dial adjusts temperature
  • Monitor® 17 series pressure balanced bath mixing valve trim
  • Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
  • Back-to-back installation capability
  • Field adjustable to limit handle rotation into hot water zone
  • Maximum diameter rotation adjustable between 90 deg and 180 deg
  • All parts are replaceable from the front of the valve
  • Stem extension kit RP77992 can be ordered to allow for an additional 1-3/4 in wall thickness
  • RP77992 ships with chrome escutcheon screws
  • For special finishes also order RP12630 escutcheon screws in desired finish
  • Hot/cold indicator
  • Standard/Approvals: ANSI A117.1, ASSE 1016, ASME A112.18.1, CSA B125.1, ICC Compliance
  • WARRANTY: Limited Lifetime
