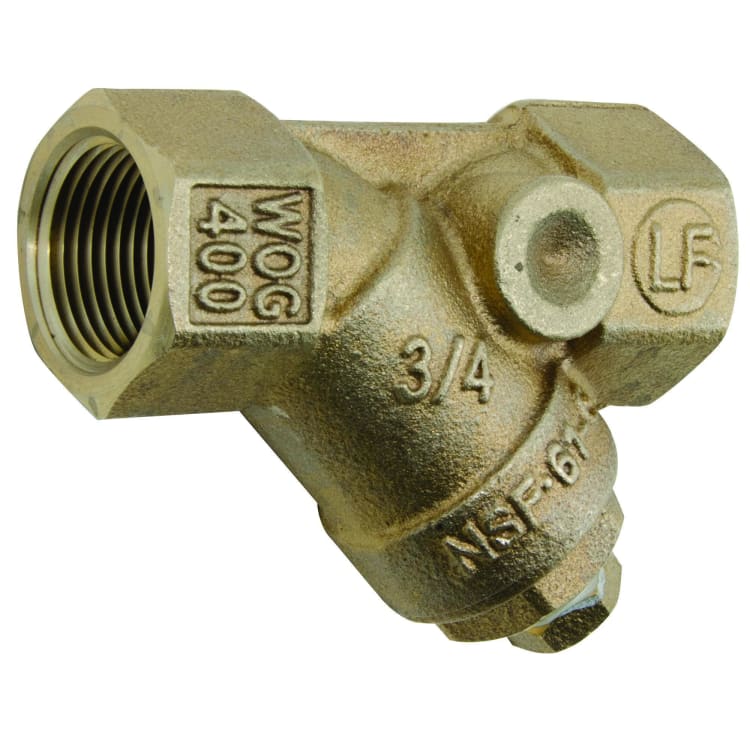

WATTS® 0379112 LF777SI Wye Strainer, 3/4 in Nominal, 3-3/16 in OAL, FNPT Connection, EPDM Softgoods, Import
WATTS®, 0379112, Wye Strainer, Series: LF777SI, 3/4 in Nominal, 3-3/16 in Overall Length, FNPT Connection, 1/4 in NPT Blow-Off, EPDM Softgoods, Cast Copper Silicon Alloy Body, Import
Documents
- Flared screen opening on upstream end provides unrestricted flow through the strainer
- The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight
- Closure plug
- Standard/Approvals: NSF 61-G|US Green Building Council Member|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm
- INCLUDES: Tapped Retainer Cap
- WARRANTY: Limited
WATTS®, 0379112, Wye Strainer, Series: LF777SI, 3/4 in Nominal, 3-3/16 in Overall Length, FNPT Connection, 1/4 in NPT Blow-Off, EPDM Softgoods, Cast Copper Silicon Alloy Body, Import
Series LF777SI, LFS777SI Lead Free brass wye-pattern strainers feature a wye-pattern, lead Free brass body stainless steel screen and solid tapped retainer cap with NBR gasket. Model LF777SI comes with threaded connections and is available in sizes 3/8 to 3 in (10 to 80mm). Model LFS777SI comes with solder connections and is available in sizes 1/2 to 2 in. (15 to 50mm). Model LF777SI - maximum pressure (non shock): 400psi at 210 deg F WOG, 125 psi at 353 deg F WSP. Model LFS777SI - maximum pressure (non shock): 400 psi at 150 deg F 15 psi at 250 deg F WSP.
- Brand: WATTS®Blow-Off Size: 1/4 in NPTConnection Type: FNPTDomestic/Import: ImportNominal Size: 3/4Overall Length: 3-3/16Series: LF777SIBody Material: Cast Copper Silicon AlloySoftgoods Material: EPDM
WATTS® 0379112 LF777SI Wye Strainer, 3/4 in Nominal, 3-3/16 in OAL, FNPT Connection, EPDM Softgoods, Import
WATTS®, 0379112, Wye Strainer, Series: LF777SI, 3/4 in Nominal, 3-3/16 in Overall Length, FNPT Connection, 1/4 in NPT Blow-Off, EPDM Softgoods, Cast Copper Silicon Alloy Body, Import
