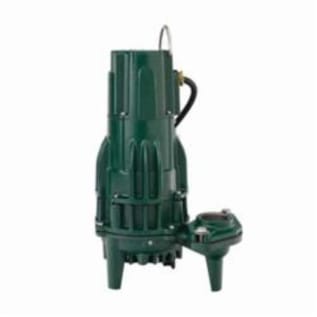

Zoeller® 191-0004 High Head Flow-Mate 191 Single Seal Submersible Effluent Pump, 145 gpm Max Flow, Non-Automatic, 137 ft Max Head, 230 VAC, 1 ph
Zoeller® Submersible Effluent Pump, Single Seal, Series: High Head Flow-Mate 191, 145 gpm Maximum, Non-Automatic, 1-1/2 in NPT Outlet, 137 ft Maximum Head, 2 hp, 230 VAC, 14.5 A, 60 Hz Frequency, 1 ph ph, 3450 rpm Motor, 3-Wire Neoprene Cord, Bronze Non-Clogging Vortex Impeller, 130 deg F, Ball Bearing, Cast Iron, 12-3/4 in W x 19-5/16 in H Dimensions
- Non-clogging vortex impeller design, bronze class 88-8-0-4
- Float-operated, submersible, 2-pole mechanical switch
- Cast iron switch case, motor, pump housing and base
- No sheet metal parts to rust or corrode
- Stainless steel screws, bolts, float rod, handle, guard, arm and seal assembly
- Oil filled, hermetically-sealed, automatic reset thermal overload protected motor
- Neoprene square ring and gasket
- Stainless steel carbon and ceramic rotary shaft seal
- Effluent or dewatering submersible pump for septic tank, low pressure pipe (LPP) and enhanced flow STEP systems
- Corrosion resistant, powder coated epoxy
- Automatic units not recommended for use in effluent systems
- SAE 1117 carbon steel motor shaft
- Upper and lower ball bearings running in bath of oil
- All 180/4180 series pumps pass 3/4 in spherical solids
- Standard/Approvals: cCSAus Certified|SSPMA Certified|UL Listed
Zoeller® Submersible Effluent Pump, Single Seal, Series: High Head Flow-Mate 191, 145 gpm Maximum, Non-Automatic, 1-1/2 in NPT Outlet, 137 ft Maximum Head, 2 hp, 230 VAC, 14.5 A, 60 Hz Frequency, 1 ph ph, 3450 rpm Motor, 3-Wire Neoprene Cord, Bronze Non-Clogging Vortex Impeller, 130 deg F, Ball Bearing, Cast Iron, 12-3/4 in W x 19-5/16 in H Dimensions
Heavy duty construction with oversized bearings and a balanced bronze, non-clogging vortex impeller allow this series of pumps to stand up to the highest heads and maximum flows. They are well suited to applications with low pressure pipe (LPP) and enhanced flow STEP systems. Using Zoeller® cool run design, we added fins to these pumps, lowering operating temperatures. The corrosion resistant, epoxy powder coated finish and hermetically sealed, oil-filled motor add up to a long-lasting, trouble-free product.
- Brand: Zoeller®Amperage Rating: 14.5Automatic/Non Automatic: Non-AutomaticBearing Type: BallCord Type: 3-Wire NeopreneDimensions: 12-3/4 in W x 19-5/16 in HFrequency Rating: 60Horsepower: 2Impeller Type: Bronze Non-Clogging VortexMaterial: Cast IronMaximum Flow Rate: 145Maximum Head: 137Motor Speed: 3450Outlet Size: 1-1/2 in NPTSeries: High Head Flow-Mate 191Temperature Rating: 130Type: Single SealVoltage Rating: 230Phase: 1
