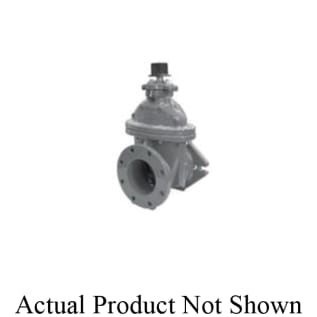

Mueller Co A-2362-19-6 Non Rising Stem Resilient Wedge Gate Valve, 6 in, Mechanical Joint x Flange, 150 lb, Ductile Iron Body
Mueller Co Gate Valve, Non Rising Stem Resilient Wedge, 6 in Nominal Size, Mechanical Joint x Flange, 250/500 psi, 150 lb, 11.06 in Inlet to Outlet Length, 18 in Top to Inlet Center, Ductile Iron Body, Bronze Stem Trim, Nitrile Stuffing Box O-Ring/Acetal Washer, Epoxy Coated
Documents
- Iron wedge, symmetrical and fully encapsulated with molded rubber, no exposed iron
- Triple O-ring seal
- 2 in square wrench nut open left or open right
- Standard/Approvals: UL 262|FM 1120/1130|ANSI/AWWA C111/C509/C515|ANSI/NSF 61/372|ASME/ANSI B16.1
Mueller Co Gate Valve, Non Rising Stem Resilient Wedge, 6 in Nominal Size, Mechanical Joint x Flange, 250/500 psi, 150 lb, 11.06 in Inlet to Outlet Length, 18 in Top to Inlet Center, Ductile Iron Body, Bronze Stem Trim, Nitrile Stuffing Box O-Ring/Acetal Washer, Epoxy Coated
- Brand:Â Mueller CoBody Material:Â Ductile IronEnd Style:Â Mechanical Joint x FlangeFinish:Â Epoxy CoatedInlet to Outlet Length:Â 11.06Nominal Size:Â 6Pressure Class:Â 150 lbPressure Rating:Â 250/500Softgoods Material:Â Nitrile Stuffing Box O-Ring/Acetal WasherTop to Inlet Center:Â 18Trim Material:Â Bronze StemType:Â Non Rising Stem Resilient Wedge
Mueller Co A-2362-19-6 Non Rising Stem Resilient Wedge Gate Valve, 6 in, Mechanical Joint x Flange, 150 lb, Ductile Iron Body
Mueller Co Gate Valve, Non Rising Stem Resilient Wedge, 6 in Nominal Size, Mechanical Joint x Flange, 250/500 psi, 150 lb, 11.06 in Inlet to Outlet Length, 18 in Top to Inlet Center, Ductile Iron Body, Bronze Stem Trim, Nitrile Stuffing Box O-Ring/Acetal Washer, Epoxy Coated
