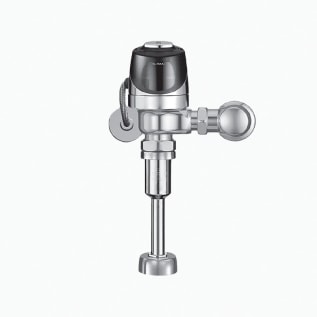

Sloan® ECOS® 3370441 ECOS 186 Single Flush Sensor Exposed Flushometer, Battery, 0.5 gpf, 3/4 in IPS Inlet, 3/4 in Spud, 15 to 100 psi, Polished Chrome, Domestic

1055745 MFG #: 3370441
$720.00 / ea
  • Brand: Sloan®
  • Connection Location: Top Spud
  • Domestic/Import: Domestic
  • Finish/color: Polished Chrome
  • Fixture Type: Urinal
  • Flush Rate: 0.5 gpf
  • Inlet Size: 3/4 in IPS
  • Manufacturer: Sloan Valve Company
  • material: Semi-Red Brass
  • Power Source: Battery
  • Pressure Rating: 15 to 100 psi
  • Sensor Range: 22 to 42 in
  • Series: ECOS 186
  • Spud Coupling: 3/4 in
  • Type: Single Flush
  • Valve Design: Diaphragm

Sloan® ECOS® Sensor Exposed Flushometer, Single Flush, Series: ECOS 186, Urinal Fixture, Battery, 0.5 gpf Flush, 3/4 in IPS Inlet, 3/4 in Spud Coupling, Diaphragm, Connection Location: Top Spud, 22 to 42 in Sensor, 15 to 100 psi, Semi-Red Brass, Polished Chrome, Domestic

Exposed, Hardwire, Sensor Activated Sloan® ECOS® Hardwire Urinal Flushometer with Smart Sense Technology™.

QTY
  • Features
  • Spud coupling and flange for 3/4 in top spud
  • Flush accuracy controlled by CID® technology
  • Initial set-up range indicator light (first 10 minutes)
  • Sweat solder adapter with cover tube and cast wall flange with set screw
  • Stop seat and vacuum breaker molded from PERMEX® rubber compound for chloramine resistance
  • Infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
  • Latching solenoid operator
  • Fixed metering by-pass and no external volume adjustment to ensure water conservation
  • Flex tube diaphragm designed for improved life and reduced maintenance
  • Engineered metal cover with replaceable lens window
  • Line powered with 6 VAC step down transformer
  • 3/4 in IPS screwdriver Bak-Chek® angle stop
  • Free spinning vandal-resistant stop cap
  • ADA compliant Sloan® ECOS® electronic infrared sensor for automatic "no hands" operation
  • Standard/Approvals: ADA Compliant|BAA Compliant|cUPC Listed|cUPC Green Certified|Satisfies LEED Credits|WaterSense Listed
  • WARRANTY: 3 Years Limited
