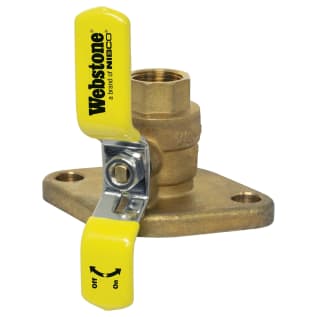

Webstone The Isolator® H-40407HV Ball Valve, 2 in Nominal, IPS x Flanged End Style, Forged Brass Body, Full Port, PTFE Softgoods, Import
Webstone The Isolator® Ball Valve, Series: 4040, 2 in Nominal, IPS x Flanged, 600 psi, 100 deg F, Full Port, Media: Water/Glycol Mixture, Lever Handle Actuator, Polished Chrome Brass Ball, 4-7/16 in Inlet to Outlet Length, 3-3/4 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE, Brass, Import
- Easily isolates the pump for replacement
- Prevents electrolysis and eliminates galvanic corrosion
- Flange features a conical inlet to minimize turbulence
- Fits virtually any standard circulator pump
- Replaces 3 components
- This valve is actuated by a blowout-proof stem
- Brass stem and PTFE seat
- Ball valve with integral spring check saves labor, space, and leak paths
- Standard/Approvals: ANSI B1.20.1|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- INCLUDES: Adjustable Packing Gland, Nuts and Bolts
- WARRANTY: Limited Lifetime
Webstone The Isolator® Ball Valve, Series: 4040, 2 in Nominal, IPS x Flanged, 600 psi, 100 deg F, Full Port, Media: Water/Glycol Mixture, Lever Handle Actuator, Polished Chrome Brass Ball, 4-7/16 in Inlet to Outlet Length, 3-3/4 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE, Brass, Import
The Isolator is a uni-flange Ball Valve that isolates a circulator pump, allowing virtually no air into the system during pump replacement or service. Its innovative design combines multiple components into a single forged brass body that saves time, labor and space. The Isolator has revolutionized the installation of circulator pumps and has evolved into the largest flanged Ball Valve program in the industry today, featuring patented technology with further patents pending. Designed for use with water, oil, glycol mix in residential or commercial residential plumbing, commericial plumbing, heating systems. Refer to specification sheets for additional technical information. All Webstone products are backed by a limited lifetime warranty.
- Brand: WebstoneActuator Type: Lever HandleBall Material: Polished Chrome BrassBody Material: Forged BrassColor: BrassDomestic/Import: ImportEnd Style: IPS x FlangeInlet to Outlet Length: 4-7/16Media: Water/Glycol MixtureNominal Size: 2Port Type: FullPressure Rating: 600Series: 4040Softgoods Material: PTFETemperature Rating: 100Top to Inlet Center: 3-3/4Trim Material: Brass Stem and PTFE Seat
Webstone The Isolator® H-40407HV Ball Valve, 2 in Nominal, IPS x Flanged End Style, Forged Brass Body, Full Port, PTFE Softgoods, Import
Webstone The Isolator® Ball Valve, Series: 4040, 2 in Nominal, IPS x Flanged, 600 psi, 100 deg F, Full Port, Media: Water/Glycol Mixture, Lever Handle Actuator, Polished Chrome Brass Ball, 4-7/16 in Inlet to Outlet Length, 3-3/4 in Top to Inlet Center, Forged Brass Body, Brass/PTFE Trim, PTFE, Brass, Import
