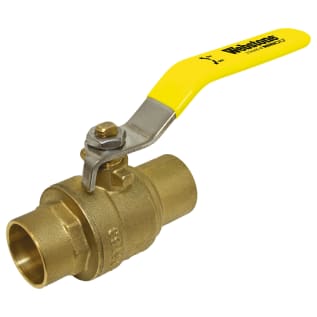

Webstone Clean Brass™ 51706 5170 Standard Ball Valve, 1-1/2 in Nominal, C End Style, Forged Brass Body, Full Port, PTFE Softgoods, Import
Webstone Clean Brass™, 51706, Ball Valve, Standard, Series: 5170, 1-1/2 in Nominal, C End Style, 600 psi CWP/150 psi WSP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 1-1/2 in Orifice, Lever Handle Actuator, 4-3/8 in Inlet to Outlet Length, 3-1/8 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Import
- Ball valve with integral spring check saves labor, space, and leak paths
- Control flow with quarter-turn lever handle
- PTFE seat/stem seal
- Models available to satisfy all state and federal low-lead laws
- This approved Webstone valve is actuated by a blow-out proof stem
- Standard/Approvals: ASME B16.18|NSF/ANSI 61-8
- INCLUDES: Adjustable Packing Gland
- WARRANTY: Lifetime
Webstone Clean Brass™, 51706, Ball Valve, Standard, Series: 5170, 1-1/2 in Nominal, C End Style, 600 psi CWP/150 psi WSP Pressure, 100 deg F, Full Port, Media: Glycol Mixture/Oil/Water, 1-1/2 in Orifice, Lever Handle Actuator, 4-3/8 in Inlet to Outlet Length, 3-1/8 in Top to Inlet Center, Forged Brass Body, PTFE Softgoods, Import
Designed for residential, commercial or industrial use with water, oil or gas. This approved Webstone valve is actuated by a blow-out proof stem and features an adjustable packing gland. Solder joint temperature ratings are per ASME B16.18 Annex A for 95-5 solder. Other solder materials have lower pressure/temperature limits. Do not silver braze or overheat valves when soldering.
- Brand: WebstoneActuator Type: Lever OperatedBall Material: HCP BrassBody Material: Forged BrassColor: BrassEnd Style: CInlet to Outlet Length: 4-3/8Media: Gas/Oil/WaterNominal Size: 1-1/2Port Type: FullPressure Rating: 600 psi WOG/150 psi WSPSeries: 5170Softgoods Material: PTFETemperature Rating: 100Top to Inlet Center: 3-1/8Trim Material: Brass Stem and PTFE Seat
