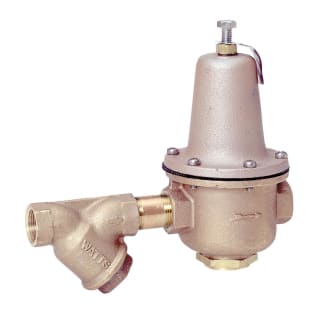

WATTS® 0298594 LF223 High Capacity Pressure Reducing Valve, 2 in Nominal, FNPT End Style, 25 to 75 psi Pressure, Brass Body, Domestic
WATTS®, 0298594, Pressure Reducing Valve, High Capacity, Series: LF223, 2 in Nominal, FNPT End Style, 25 to 75 psi Pressure, 33 to 160 deg F, Media: Water, 8 in Inlet to Outlet Length, 10-3/4 in Top to Inlet Center, Brass Body, Buna-N® O-Ring, Seat Gasket/Reinforced Buna-N® Diaphragm Softgoods, Domestic
- Disc holder removable for replacement of disc without dismantling the valve, no special tools are required
- Serviceable in line
- Optional bypass feature controls thermal expansion pressure
- Sealed spring cage on all models for accessible outdoor or pit installations
- NPT threaded female inlet with strainer by NPT threaded female outlet
- Lead free cast copper silicon alloy body construction
- Enlarged diaphragm, spring cage and seat orifice for high capacity performance
- High temperature resisting diaphragm for hot or cold water
- Standard/Approvals: ANSI A112.26|ASSE Standard 1003|CSA Standard B356|IAPMO Listed|Military Standard MIL-V-18146B|Southern Standard Plumbing Code | PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm.
- WARRANTY: 1 year Limited
WATTS®, 0298594, Pressure Reducing Valve, High Capacity, Series: LF223, 2 in Nominal, FNPT End Style, 25 to 75 psi Pressure, 33 to 160 deg F, Media: Water, 8 in Inlet to Outlet Length, 10-3/4 in Top to Inlet Center, Brass Body, Buna-N® O-Ring, Seat Gasket/Reinforced Buna-N® Diaphragm Softgoods, Domestic
Series LF223, LF223S Lead Free High Capacity Water Pressure Reducing Valves are used in commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a Lead Free brass body construction (2-1/2 in is iron), enlarged diaphragm, spring cage and seat orifice for super capacity, sealed spring cage for waterworks pit installations and an optional thermal expansion bypass. Available with NPT threaded female inlet and NPT female threaded outlet with (LF223-S) or without (LF223) strainer.
- Brand: WATTS®Body Material: BrassDomestic/Import: DomesticEnd Style: FNPTInlet to Outlet Length: 8Media: WaterNominal Size: 2Pressure Range: 25 to 75Series: LF223Softgoods Material: Buna-N® O-Ring, Seat Gasket/Reinforced Buna-N® DiaphragmTemperature Rating: 33 to 160Top to Inlet Center: 10-3/4Type: High Capacity
