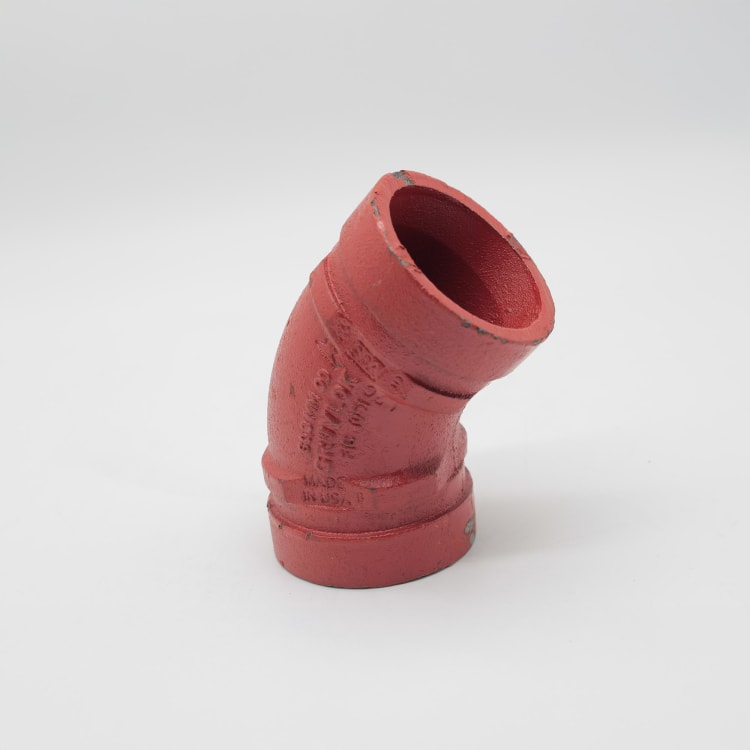

Gruvlok® 0390014785 FIG 7051 Standard 45 deg Pipe Elbow, 2 in Nominal, Grooved End Style, Ductile Iron, Rust Inhibiting Painted, Domestic

10407 MFG #: 0390014785
$170.11 / ea
  • Color: Orange
  • Dimensions: 2.375 in OD
  • Domestic/Import: Domestic
  • End Style: Grooved
  • Finish: Rust Inhibiting Painted
  • Fitting/Connector Type: 45 deg Elbow
  • Material: Ductile Iron
  • Nominal Size: 2
  • Pressure Rating: 1000
  • Series: FIG 7051
  • Type: Standard

Gruvlok® Pipe Elbow, Standard, Series: FIG 7051, Fitting/Connector Type: 45 deg Elbow, 2 in Nominal, Grooved, 1000 psi, Ductile Iron, Rust Inhibiting Painted, Orange, 2.375 in OD, Domestic

Gruvlok® fittings are available through 24 in nominal pipe size in a variety of styles. Use the Fitting Size Table to convert nominal pipe size to corresponding pipe O.D. These fittings are designed to provide minimum pressure drop and uniform strength. Depending on styles and size, Gruvlok® fittings are provided in various materials including ductile iron, forged steel or fabricated steel.

QTY
  • Features
  • Standard/Approvals: ASTM A536 Grade 65-45-12|cULus Listed|FM Approved|LPCB Approved|NSF/ANSI 61|VdS Certified
