Uponor

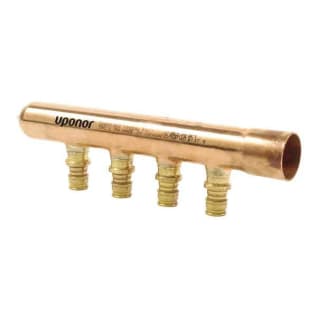

Uponor ProPEX® LF2821050 Type L Branch Manifold, 1 in Nominal, Brass/Copper, Import
Uponor ProPEX® Branch Manifold, Type L, 1 in Nominal, 14.95 in Length, 150 psi Pressure, Brass/Copper, 210 deg F, Import
Documents
- 320 deg F at no pressure
- 12.8 gpm at 5 fps
- 20.5 gpm at 8 fps
- Use any product designed to mount 1 in copper pipe as a mounting bracket
- Any bend within 6 inches of the ProPEX connection to the manifold requires the use of a Tube Talon (F7050750) or Bend Support (A5110500 and A5150500)
- Type L copper, C69300 brass material
- ProPEX tool is required, ProPEX rings sold separately
- Lead free brass
- Standard/Approvals: ANSI/NSF 14 and 61 Certified|Annex G|ASTM F877/F1960|CAN/CSA B137.5|ICC ESR 1099|IAPMO Listed|UL 1821|ULC/ORD - C 199P|U.P. Code
Uponor ProPEX® Branch Manifold, Type L, 1 in Nominal, 14.95 in Length, 150 psi Pressure, Brass/Copper, 210 deg F, Import
ProPEX® 1 in copper branch manifolds feature 1/2 in ProPEX® LF brass outlets brazed to the manifold trunk. Sweat manifolds together to create the desired number of outlets. Do not exceed acceptable flow rates for 1 in nominal copper.
- Brand: UponorDomestic/Import: ImportLength: 14.95Material: Brass/CopperNominal Size: 1Pressure Rating: 150Temperature Rating: 210Type: Type L
