Resideo Y8610U6006/U Intermittent Pilot Retrofit Kit, 270000 Btu/hr Capacity, 24 VAC, 2 A, 24 VAC Control, Import
Resideo Intermittent Pilot Retrofit Kit, 270000 Btu/hr Capacity, 24 VAC, 2 A, 24 VAC Control, Quick Terminal Electrical Connections, Liquid Propane, Natural Gas, 30 s Prepurge, 1/2 psig Pressure, For Use With: Natural or LP Gas, Domestic/Import: Import
- Includes gas valves, ignition module, pilot burner hardware, ignition cable and wiring harness
- Provides 100 percent pilot gas shutoff if pilot fails to light; after 6 min delay, trial for ignition is repeated
- Ignition trail or delay sequence is repeated until the appliance lights or call for heat is removed
- 24 V control at 60 Hz
- Standard/Approvals: ANSI Z21.71

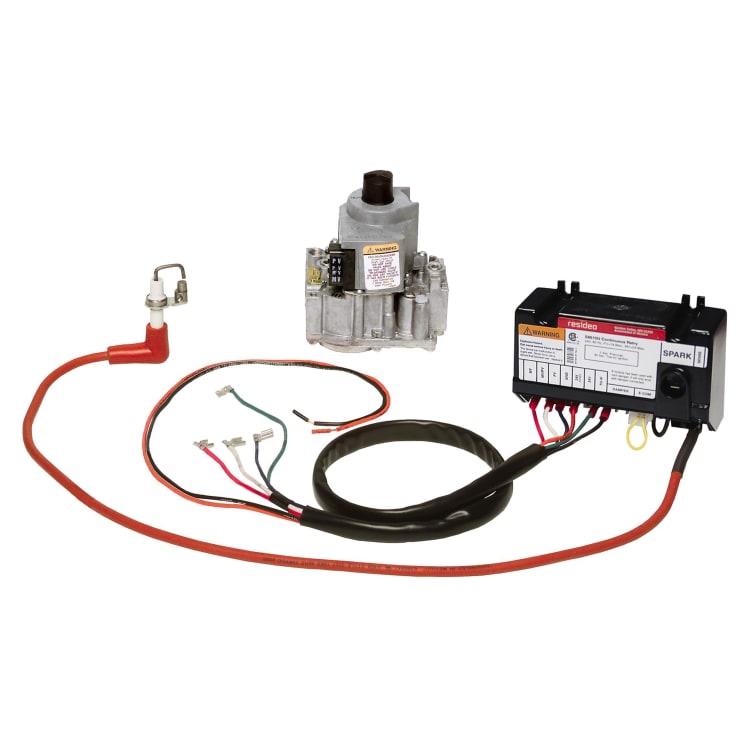

- INCLUDES: S8610U Intermittent Pilot Module, VR8304M3558 Furnace Gas Valve, 392431 Igniter-Sensor, 394800-30 Ignition Cable, 393691 Natural to LP Gas Conversion Kit, Wiring Harness, 393690-14 Straight Flange Kit (3/4 in), Reducer Adapters for Gas Control with VR8304M and Installation Hardware
Resideo Intermittent Pilot Retrofit Kit, 270000 Btu/hr Capacity, 24 VAC, 2 A, 24 VAC Control, Quick Terminal Electrical Connections, Liquid Propane, Natural Gas, 30 s Prepurge, 1/2 psig Pressure, For Use With: Natural or LP Gas, Domestic/Import: Import
Intermittent Pilot Retrofit Kits save energy by converting atmospheric standing pilot systems to intermittent pilot. Typical applications are gas-fired atmospheric furnaces, boilers and heating appliances.
- Brand:Â ResideoAmperage Rating:Â 2Capacity:Â 270000Domestic/Import:Â ImportGas Type:Â Liquid Propane, Natural GasPressure Rating:Â 1/2Suitable For Use With:Â Natural or LP GasVoltage Rating:Â 24
Resideo Y8610U6006/U Intermittent Pilot Retrofit Kit, 270000 Btu/hr Capacity, 24 VAC, 2 A, 24 VAC Control, Import
Resideo Intermittent Pilot Retrofit Kit, 270000 Btu/hr Capacity, 24 VAC, 2 A, 24 VAC Control, Quick Terminal Electrical Connections, Liquid Propane, Natural Gas, 30 s Prepurge, 1/2 psig Pressure, For Use With: Natural or LP Gas, Domestic/Import: Import
