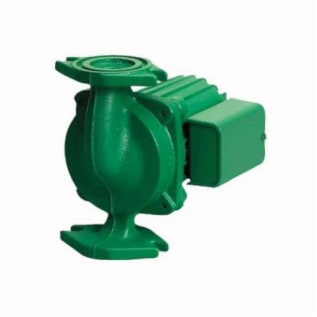

Taco® 009-SF5 9 Series Stainless Steel Cartridge Circulator Pump, 10 gpm Flow Rate, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged Inlet x 3/4, 1, 1-1/4, 1-1/2 in Outlet, 115 VAC, 1 Phase , Domestic
- Amperage Rating: 1.40
- Dimensions: 7 in L x 4-1/8 in W x 6-3/8 in H
- Flow Rate: 10
- Frequency Rating: 60
- Inlet Size: 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged
- Maximum Head: 35
- Maximum Pressure: 150
- Motor Speed: 3250
- Power Rating: 1/8
- Series: 9 Series
- Temperature Rating: 240
- Voltage Rating: 115
- Phase: 1
Taco®, 009-SF5, Cartridge Circulator Pump, Stainless Steel, Series: 9 Series, 10 gpm Flow Rate, 3/4 in, 1 in, 1-1/4 in, 1-1/2 in Flanged Inlet, 3/4, 1, 1-1/4, 1-1/2 in Outlet, 35 ft Maximum Head, 1/8 hp Power, 115 VAC, 1.40 A, 60 Hz Frequency, 1 ph, 150 psi Maximum, 3250 rpm Motor, Non-Metallic Impeller, Flange Mounting, 240 deg F, Carbon Bearing, 7 in L x 4-1/8 in W x 6-3/8 in H Dimensions, Domestic
The high velocity series Taco® 009 cartridge circulator is designed for quiet, efficient operation in higher-head/lower-flow applications for Hydronic heating, Radiant in-floor/panel heating, solar heating, heat recovery and domestic water recirculation systems. Its unique field-serviceable cartridge contains all moving parts. Replacing the cartridge rebuilds the circulator. With no mechanical seal, the self-lubricating, maintenance free design provides unmatched reliability. Available in cast iron or bronze construction.
- Features
- Typical uses include hydronic heating, radiant in-floor/panel heating and closed-loop solar heating systems
- The stainless steel 009 can be used in higher-head/lower-flow heat recovery, open-loop solar heating and light commercial domestic water recirculation systems
- The unique replaceable cartridge contains all of the moving parts and allows for easy service, instead of replacing the entire circulator
- Compact, direct-drive, low power consumption design is ideal for high-efficiency jobs
- Universal flange to flange dimensions
- Cast iron or bronze construction
- Aluminum stator housing
- Non metallic impeller
- Ceramic shaft
- Carbon bearings
- EPDM O-ring and gaskets
- Standard high capacity output-compact design
- Quiet, efficient operation
- Unique replaceable cartridge design - Field serviceable
- Self lubricating
- No mechanical seal
- Unmatched reliability - Maintenance free
- Standard/Approvals: cULus Listed
- INCLUDES: Flange Gaskets
- WARRANTY: 3 Years
