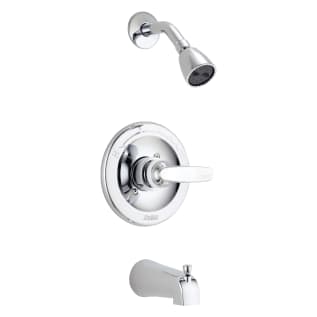

DELTA® Monitor® 13 Foundations® Tub and Shower Trim, 2 gpm, Chrome Plated, 1 Handles, Slip-On/Pull-Up Diverter Spout

1015141 MFG #: BT13410
/ ea

DELTA® Tub and Shower Trim, Series Monitor® 13, Collection: Foundations®, 2 gpm, Slip-On/Pull-Up Diverter Spout, 5-13/32 in Spout Reach, 5-3/8 in Spout Height, Lever Handle, 1 Handles, 1/2 in Connection, IPS Connection, Spray Pattern: Full Body, 1 Spray Functions, Wall Mount, Pressure Balanced Valve Valve/Cartridge, Brass, Chrome Plated

Simple, yet cleanly defined curves make the Foundations Bath Series a well-suited accent to any bathroom decor.

  • Features
  • WaterSense® certification promotes water conservation
  • Monitor pressure balance valve keeps water temperature within a safe +/-3 deg F (+/-1.6 deg C), helping to protect you from sudden changes in hot or cold water pressure
  • Trim kit only, must order MultiChoice® universal rough-in separately to complete the unit
  • Single function operation
  • Single lever handle for ease of temperature control
  • Monitor® 13 series pressure balanced bath mixing valve trim
  • Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
  • For use with MultiChoice® universal rough valve body
  • Back-to-back installation capability
  • Solid brass forged body
  • Temperature only controlled with handle
  • Field Adjustable means to limit handle rotation into hot water zone
  • 120 deg maximum handle rotation
  • All parts replaceable from the front of the valve
  • RP77991 ships with chrome escutcheon screws
  • Removable threaded adapter for 1/2 in IPS
  • Full body 2 in showerhead
  • 2 gpm at 80 psi
  • Standard/Approvals: ADA Compliant, ASME A112.18.1, ASSE 1016, CSA B125.1, EPA WaterSense® Certified, Water-Efficient
