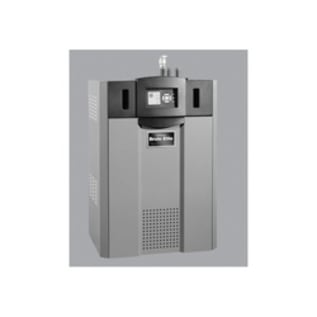

Bradford White® BNTV-850-NJX0 Brute™ Elite Electric Modulating Volume Tankless Water Heater, 120 VAC, 1 ph, 2 in MNPT Water, 2 A
Bradford White® Volume Tankless Water Heater, Electric Modulating, Series: Brute™ Elite, 120 VAC, 2 A, 1 ph, 68 gpm, 2 in MNPT Water Connection, Energy Factor: 0.96, 2473 gph at 40 deg F Rise Recovery, 160 psi, ASME Yes/No: Yes, 25 in W x 55-1/4 in D x 38-1/4 in H
Documents
- Large LCD display with touchpad user interface
- Menus for login, display setup, quick start, advanced setup, test and diagnostics
- Password-protected parameters for installer use
- Quick start feature for simple, single heater installations
- Dry alarm contacts for ignition failure
- Modulation down to 20% of full fire (5:1 turndown)
- Sealed combustion chamber
- Vent temperature cutoff feature
- Built-in condensate trap
- Direct spark ignition system
- Sensor for domestic water tank
- Stainless steel heat exchanger with welded construction (no gaskets)
- Integrated PID temperature and ignition controls
- Electronic PID modulating control
- Manual reset high limit
- On/off toggle switch
- Low NOx system exceeds the most stringent regulations for air quality - less than 10 ppm NOx
- Natural gas fuel
- CSD-1 mounting
- No pump
- Standard/Approvals: AHRI Certified|ASME H Certified|CSA Certified
- WARRANTY: 8 Years Limited
Bradford White® Volume Tankless Water Heater, Electric Modulating, Series: Brute™ Elite, 120 VAC, 2 A, 1 ph, 68 gpm, 2 in MNPT Water Connection, Energy Factor: 0.96, 2473 gph at 40 deg F Rise Recovery, 160 psi, ASME Yes/No: Yes, 25 in W x 55-1/4 in D x 38-1/4 in H
- Brand: Bradford White®Amperage Rating: 2ASME Yes/No: YesDimensions: 25 in W x 55-1/4 in D x 38-1/4 in HEnergy Factor: 0.96Flow Rate: 68Phase: 1Pressure Rating: 160Recovery Rate: 2473 gph at 40 deg F RiseSeries: Brute™ EliteType: Electric ModulatingVoltage Rating: 120Water Connection: 2 in MNPT
