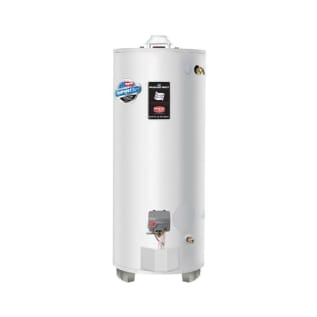

Bradford White® LG275H763N Gas Water Heater, 75 gal Tank, Domestic, 76000 Btu/hr Heating, Natural Gas Fuel, Atmospheric Vent
Bradford White® Gas Water Heater, 76000 Btu/hr Heating, Natural Gas, 1/2 in Gas Connection, 75 gal Tank, Piezo Ignition, Atmospheric Vent, 4 in Vent Size, 74 gph at 100 deg F Rise Recovery, 3/4 in NPT Water Connection, 150 psi, 180 deg F, Ultra Low NOx: No, ASME Yes/No: No, Steel, Vitraglas®, 24 in Dia x 62-5/8 in H, Domestic
- Bradford White® ICON System™ intelligent gas control with proven millivolt powered technology and built-in piezo igniter
- Enhanced performance
- Advanced temperature control system
- Intelligent diagnostics
- Pilot on indication
- Separate immersed thermowell
- Factory installed Hydrojet® 2 ™ sediment reduction system
- Vitraglas® lining
- Side connection - 3/4 in NPT tappings that allow easy connections for space heating applications
- Non-CFC foam insulation
- Water connections - Factory installed true dielectric fittings extend water heater life and simplify water line connections
- Protective magnesium anode rod
- 4 in snap lock draft diverter
- Low restriction brass drain valve
- Light duty atmospheric vent high input gas water heater
- 4 in WC
- Standard/Approvals: AHRI Certified|ANSI Z-21.10.3|ASHRAE 90.1b|CEC Listed|CSA LLC-Low Lead Content|CSA International (Formerly AGA/CGA)|NAECA Compliant|NSF 372|PROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- INCLUDES: Temperature and Pressure Relief Valve
- WARRANTY: 3 Years Limited on Tank/1 Year Limited on Componen
Bradford White® Gas Water Heater, 76000 Btu/hr Heating, Natural Gas, 1/2 in Gas Connection, 75 gal Tank, Piezo Ignition, Atmospheric Vent, 4 in Vent Size, 74 gph at 100 deg F Rise Recovery, 3/4 in NPT Water Connection, 150 psi, 180 deg F, Ultra Low NOx: No, ASME Yes/No: No, Steel, Vitraglas®, 24 in Dia x 62-5/8 in H, Domestic
These Light Duty models are atmospherically vented and offer larger gallon capacities and higher recovery rates. This translates to an increased amount of hot water available at a usable temperature in less time than normal input models. They are perfect for applications that demand larger volumes of water such as small apartment buildings or small motels. Light Duty Atmospheric Vent High Input models are also available in Ultra Low NOx versions.
- Brand: Bradford White®Dimensions: 24 in Dia x 62-5/8 in HDomestic/Import: DomesticFinish: Vitraglas®Fuel Type: Natural GasGas Connection: 1/2Heating Capacity: 76000Ignition Type: PiezoMaterial: SteelPressure Rating: 150Recovery Rate: 74 gph at 100 deg F RiseTank Capacity: 75Temperature Rating: 180Ultra Low NOx: NoVent Size: 4Vent Type: AtmosphericWater Connection: 3/4 in NPTASME Yes/No: No
