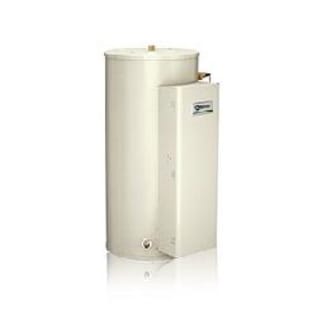

AO Smith® DRE-120-40.5 Gold DRE-120 Electric Water Heater, 119 gal Tank, 40500 W, 220 VAC, 1 ph, 138226 Btu/hr Heating
AO Smith® Electric Water Heater, Series: Gold DRE-120, 138226 Btu/hr Heating, 119 gal Tank, 220 VAC, 40500 W, 1 ph, 1-1/4 in NPT Water Connection, (9) Incoloy® Heating Element, 554 gph at 30 deg F Rise Recovery, 150 psi, 120 to 181 deg F, ASME Yes/No: No, Baked Enamel, 29-1/2 in W x 62-1/4 in H
- Designed for use as a recovery heater having its own storage tank
- Fusing protects all elements, thermostat and internal wiring circuits against excess current flow
- Heavy duty medium watt density elements have Incoloy® sheathing provide excellent protection against oxidation and scaling
- Two anode rods for maximum corrosion protection
- Simplified circuitry, color coded for ease of service
- Standard/Approvals: AHRI Certified|ASHRAE/IES 90.1|CSA Certified|UL Listed
- WARRANTY: 3 Years Limited Tank/1 Year Limited Parts
AO Smith® Electric Water Heater, Series: Gold DRE-120, 138226 Btu/hr Heating, 119 gal Tank, 220 VAC, 40500 W, 1 ph, 1-1/4 in NPT Water Connection, (9) Incoloy® Heating Element, 554 gph at 30 deg F Rise Recovery, 150 psi, 120 to 181 deg F, ASME Yes/No: No, Baked Enamel, 29-1/2 in W x 62-1/4 in H
- Brand: AO Smith®ASME Yes/No: NoDimensions: 29-1/2 in W x 62-1/4 in HFinish: Baked EnamelHeating Capacity: 138226Heating Element: (9) Incoloy®Phase: 1Power Rating: 40500Pressure Rating: 150Recovery Rate: 554 gph at 30 deg F RiseSeries: Gold DRE-120Tank Capacity: 119Temperature Rating: 120 to 181Voltage Rating: 220Water Connection: 1-1/4 in NPT
AO Smith® DRE-120-40.5 Gold DRE-120 Electric Water Heater, 119 gal Tank, 40500 W, 220 VAC, 1 ph, 138226 Btu/hr Heating
AO Smith® Electric Water Heater, Series: Gold DRE-120, 138226 Btu/hr Heating, 119 gal Tank, 220 VAC, 40500 W, 1 ph, 1-1/4 in NPT Water Connection, (9) Incoloy® Heating Element, 554 gph at 30 deg F Rise Recovery, 150 psi, 120 to 181 deg F, ASME Yes/No: No, Baked Enamel, 29-1/2 in W x 62-1/4 in H
