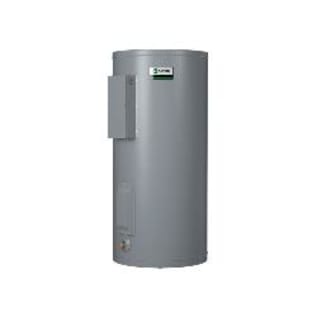

AO Smith® DEN-80D Dura-Power™ DEN-80 Upright Electric Water Heater, 80 gal Tank, 9000 W, 480 VAC, 3 ph
AO Smith® Electric Water Heater, Upright, Series: Dura-Power™ DEN-80, 80 gal Tank, 480 VAC, 9000 W, 3 ph, 3/4 in FNPT Water Connection, (2) Zinc Plated Copper Sheath Heating Element, 101 gph at 36 deg F Rise Recovery, 150 psi, 120 to 181 deg F, ASME Yes/No: No, Baked Enamel, 24 in Dia x 59-3/8 in L
- Designed for use as a recovery heater having its own storage tank
- Glass lined tank interior is coated with glass specially developed by AO Smith® for water heater use
- Two zinc plated copper sheaths for longer life
- Medium watt density means lower surface temperature to minimize scale build-up and more surface to heat water
- Factory installed terminal block
- Temperature control (adjustable through arrange of 110 to 170 deg F on single element and 120 to 181 deg F on dual element) and manual reset high temperature cut-off per element (dual element models)
- Simplified circuitry, color coded for ease of service
- Anode rod for maximum corrosion protection
- Cabinet has bonderized undercoat with baked enamel finish
- Top inlet and outlet openings
- Brass drain valve
- Standard/Approvals: ASHRAE/IESNA 90.1|CSA Certified|cULus Listed
- WARRANTY: Limited
AO Smith® Electric Water Heater, Upright, Series: Dura-Power™ DEN-80, 80 gal Tank, 480 VAC, 9000 W, 3 ph, 3/4 in FNPT Water Connection, (2) Zinc Plated Copper Sheath Heating Element, 101 gph at 36 deg F Rise Recovery, 150 psi, 120 to 181 deg F, ASME Yes/No: No, Baked Enamel, 24 in Dia x 59-3/8 in L
- Brand: AO Smith®ASME Yes/No: NoDimensions: 24 in Dia x 59-3/8 in LFinish: Baked EnamelHeating Element: (2) Zinc Plated Copper SheathPhase: 3Power Rating: 9000Pressure Rating: 150Recovery Rate: 101 gph at 36 deg F RiseSeries: Dura-Power™ DEN-80Tank Capacity: 80Temperature Rating: 120 to 181Type: UprightVoltage Rating: 480Water Connection: 3/4 in FNPT
